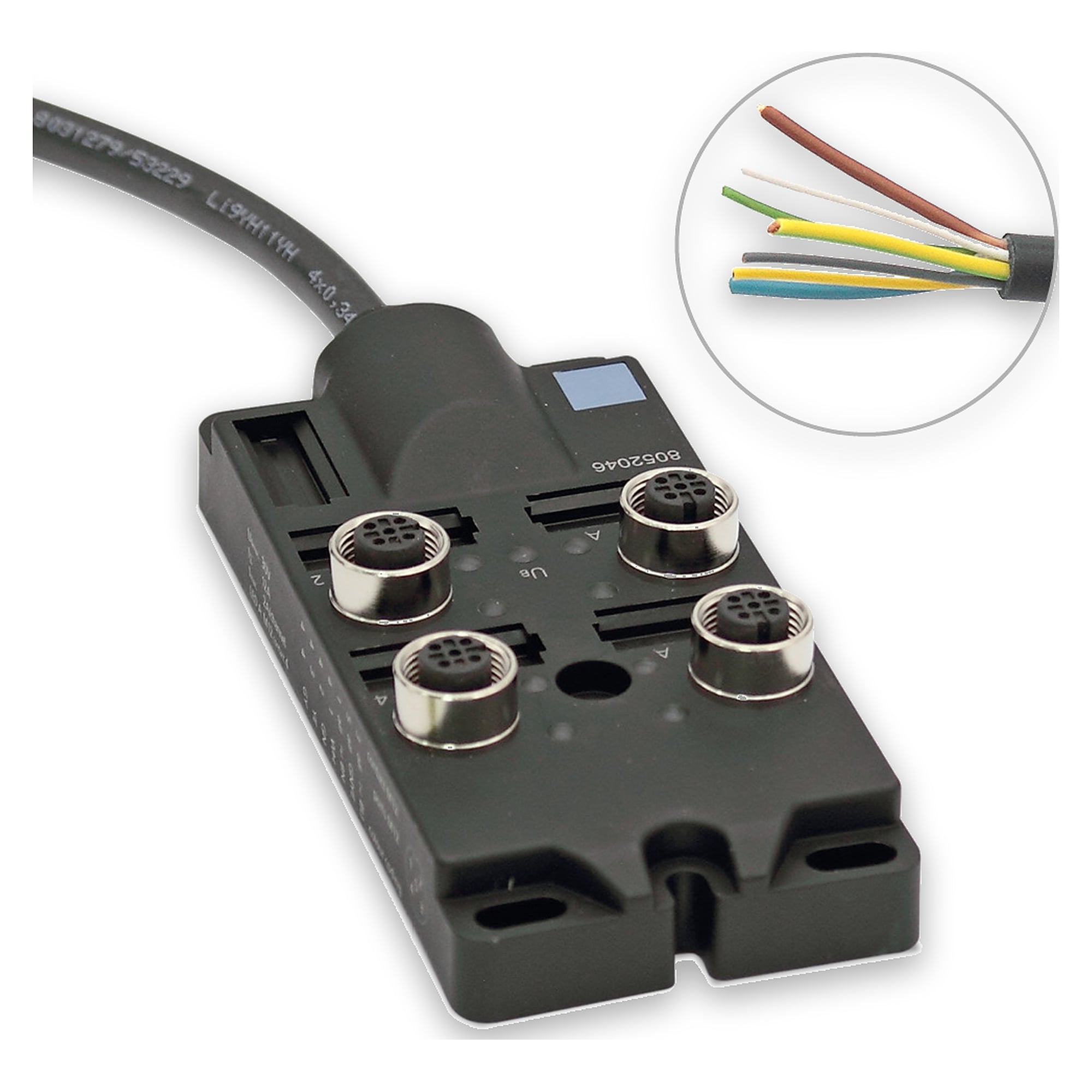

M12 Sensor-/Aktorbox 4-fach, 10 m PUR-Festkabel, A-kodiert, 24V DC - LED2WORK 200300-01

The M12 sensor/actuator box connects up to four 24V DC LED2WORK luminaires to a controller or power supply. The passive box has four A-coded M12 ports and is connected via a 10 m PUR fixed cable.

Benefits

• Four M12 ports for up to four 24V DC luminaires on one supply
• Fixed 10 m PUR cable, no extra field wiring required
• 2000 mA load per pin, gold-plated CuSn contacts
• IP65/IP67 protection, RoHS compliant and UL listed, mechanical life >100 mating cycles

Technical data

• Model: connection accessory

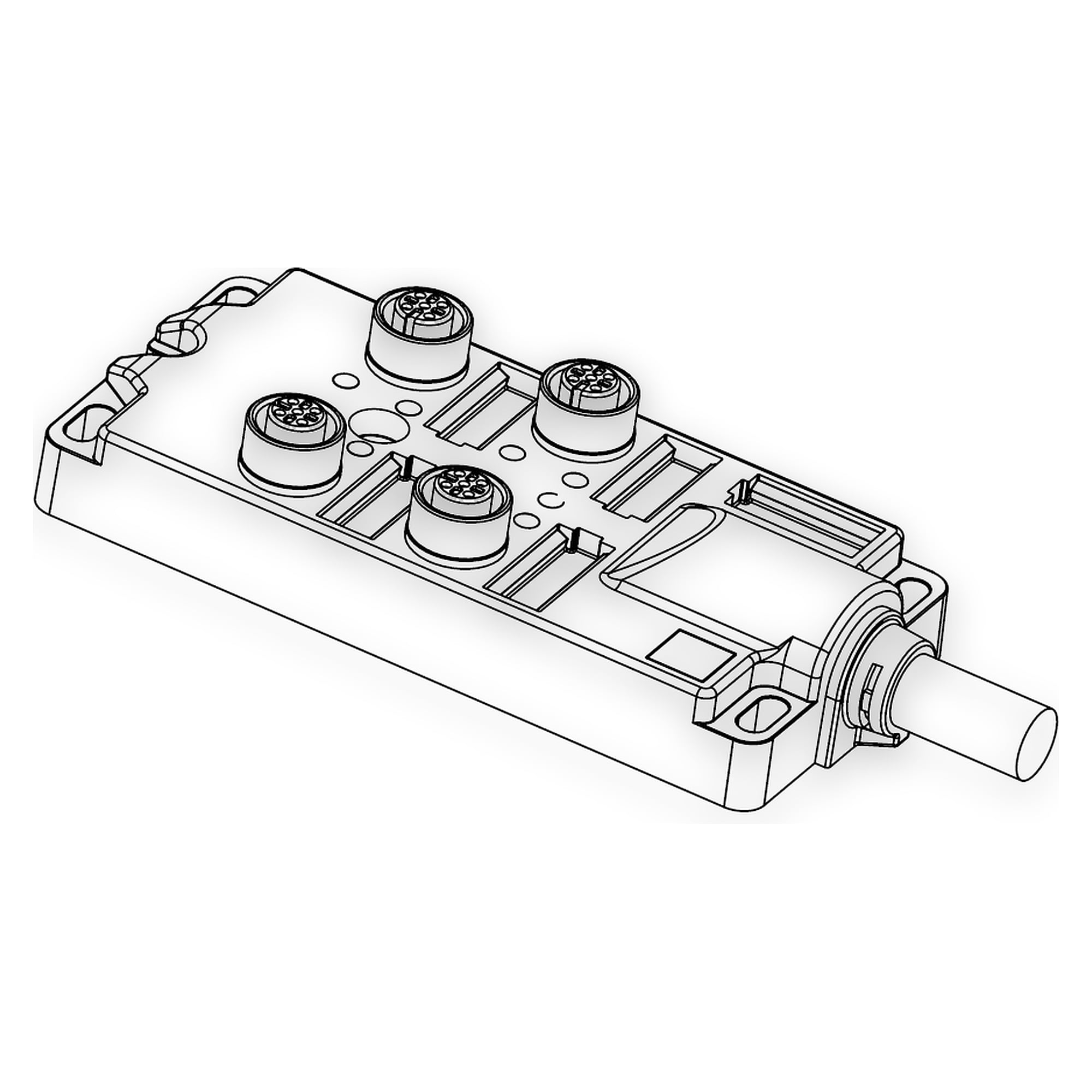

• Design: M12-A distribution box, 4-port, with fixed cable
• Coding: A-coded, 4-pole
• Suitable for: LED2WORK luminaires 24V DC, except RGB and RGB-W
• Cable length: 10 m
• Load per pin: 2000 mA
• Protection rating (mounted): IP65, IP67
• Operating temperature: -30 °C to +90 °C
• Material: PA contact carrier, FPM/FKM seal, gold-plated CuSn contacts, PUR cable
• Standards: IEC 61076-2-101
• Dimensions: 115.4 mm x 54 mm x 25.5 mm
• Weight: 500 g
• Certifications: CE, RoHS, UL
• Mechanical life: >100 mating cycles
• Made in: Germany

Applications

For the central connection of several 24V DC machine or signal lights in machines and plants, for example a shared supply via a controller. Not for RGB and RGB-W luminaires.
