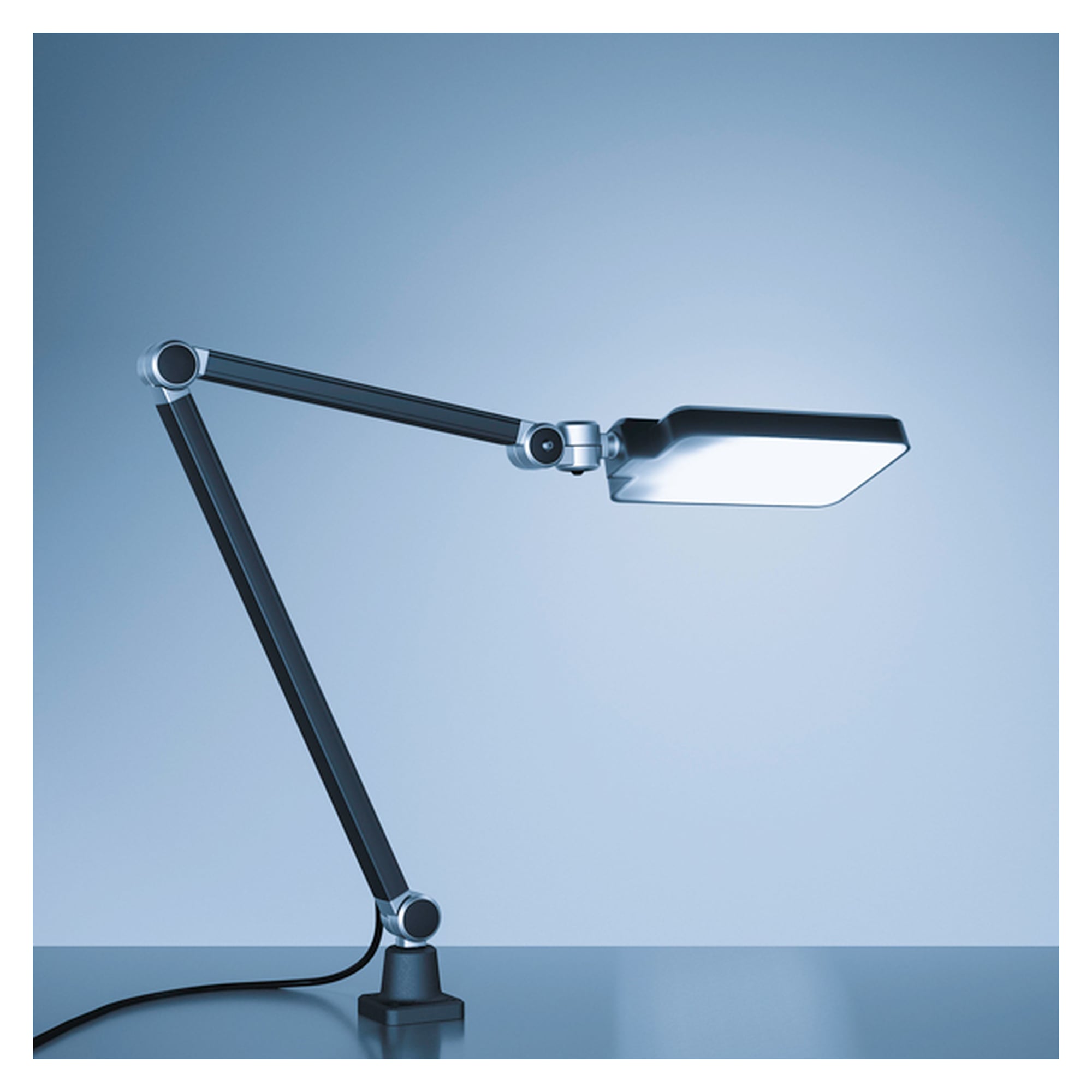

LED arm-mounted luminaire ROCIA.planar RPD 1700/850/DS, 1450 lm, 22-26 V DC, IP65 - Waldmann 113688000-00800644

Machines and production systems usually provide a 24 V control voltage. The ROCIA.planar RPD 1700/850/DS uses it directly: it connects to 22-26 V DC through an approx. 3 m cable with free wire ends, without additional control gear. With approx. 1450 lm at 16 W, 5000 K and IP65 for the whole luminaire, it puts even light on tool and workpiece.

Benefits

• Direct connection to the machine 22-26 V DC supply, no power unit and no mains voltage at the luminaire
• Complete luminaire rated IP65 and protection class III for use right on the machine
• Approx. 1450 lm at only 16 W, around 90 lm/W
• Opal polycarbonate diffuser with a 110° beam angle and UGR ≤ 28 gives an even field without hard shadows on the workpiece
• Push button in the luminaire head switches and dims continuously, so brightness can be matched to fine work or visual inspection
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Machine tools and machining centres with 24 V control voltage
• Assembly and test stations on production lines
• Special-purpose machines and fixtures

Installation and accessories

• Connection to 22-26 V DC via approx. 3 m cable with free stranded wire ends

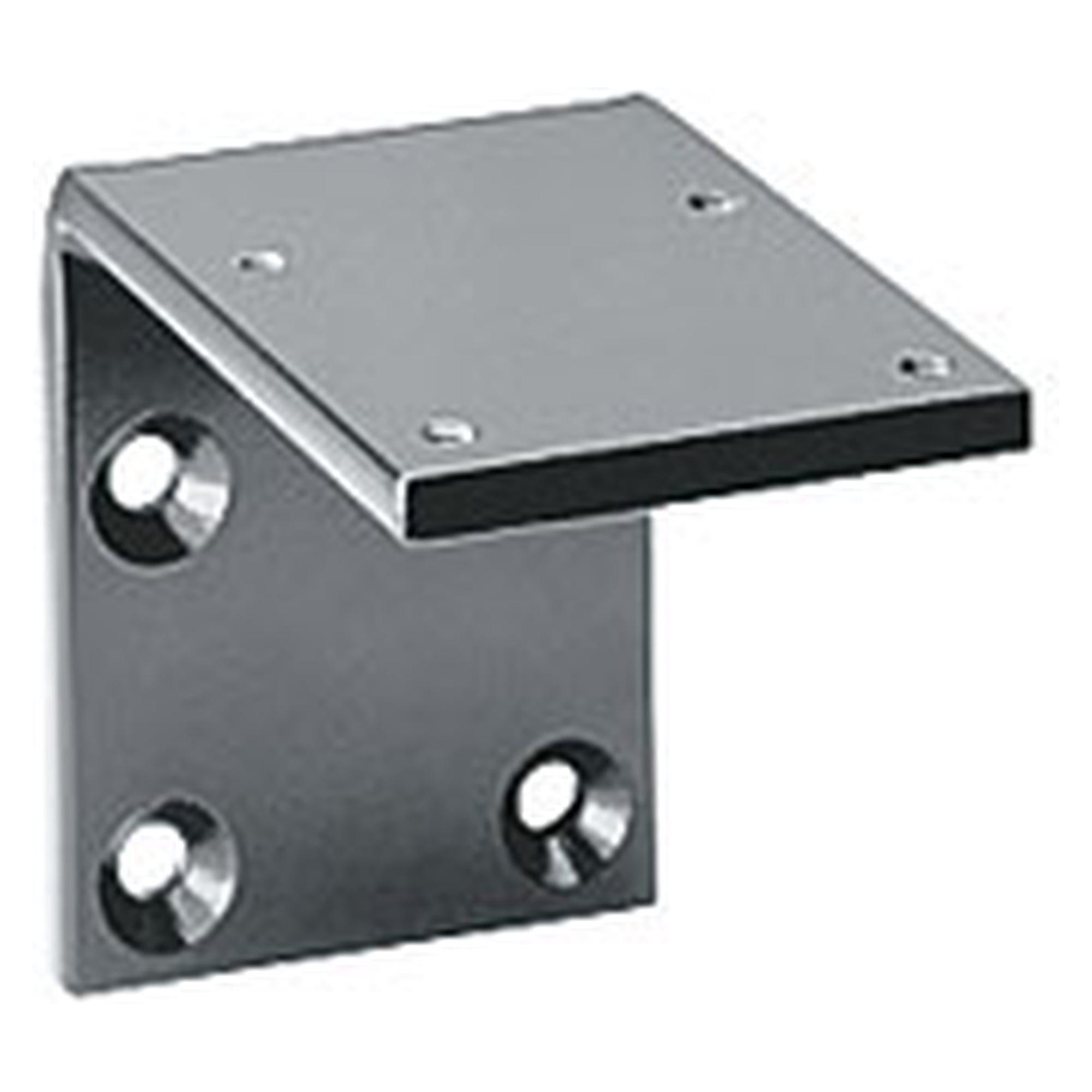

• Mounting via screw-down flange, table clamp or wall bracket in black or white (accessories)
