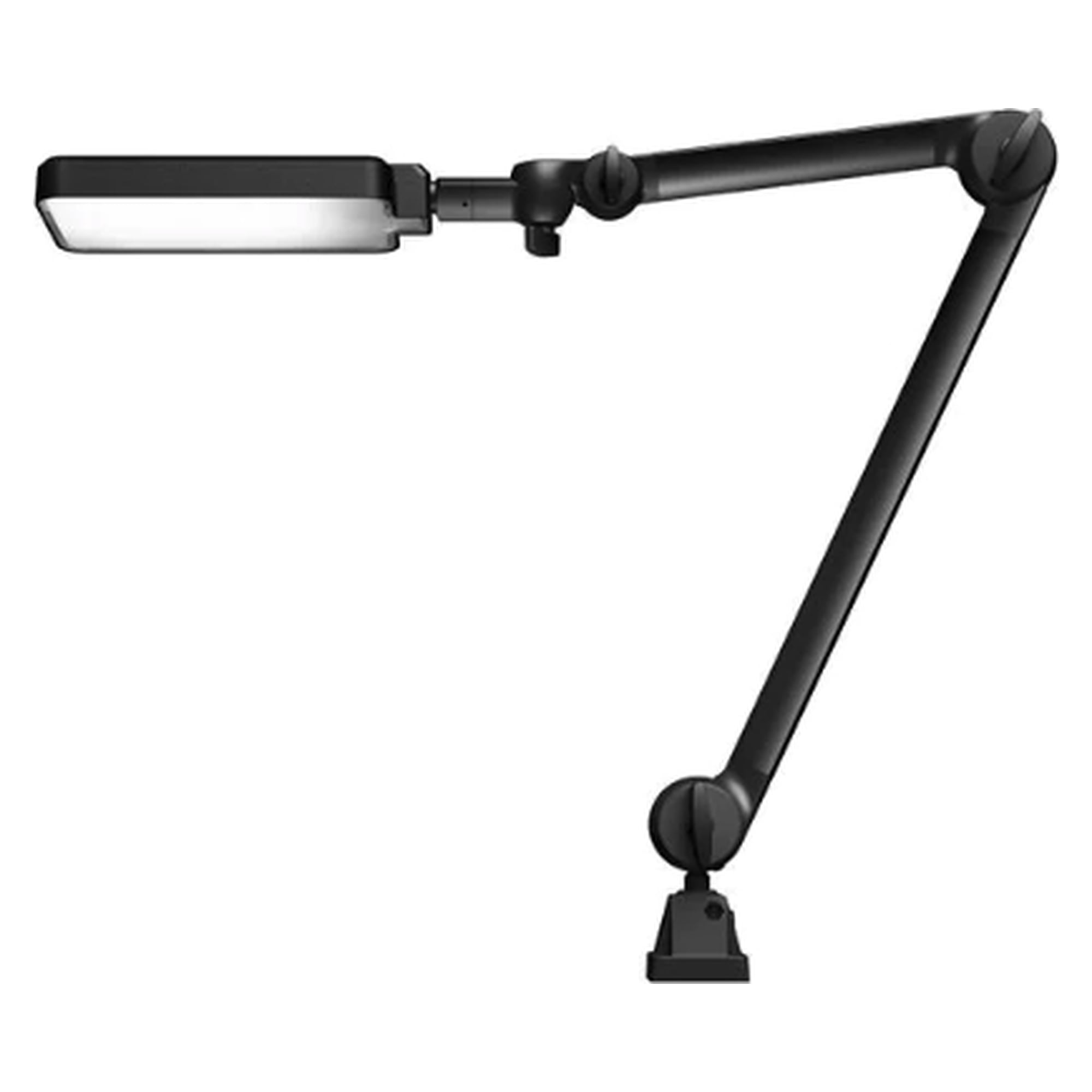

LED arm-mounted luminaire ROCIA.planar PRO RPD 1700/850/DS, 24 V DC, IP65, fully spring-balanced - Waldmann 114570000-00816934

When the luminaire has to be realigned with every work step, the arm must hold without retightening joints. On the ROCIA.planar PRO RPD 1700/850/DS the entire arm is spring-balanced, so the head stays exactly where it is pushed. It is powered directly from the machine 22-26 V DC supply, delivers approx. 1450 lm at 16 W and is fully rated IP65.

Benefits

• Fully spring-balanced arm: precise one-hand positioning without adjusting joints
• Direct connection to 22-26 V DC, protection class III, no separate control gear
• Complete luminaire rated IP65 for use on machines and systems
• Approx. 1450 lm at 16 W, around 90 lm/W, 5000 K with CRI ≥ 80
• Push button in the luminaire head switches and dims continuously, so brightness can be matched to fine work or visual inspection
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Test and set-up stations on machines where the light is moved often
• Machining centres and special-purpose machines with 24 V control voltage
• Assembly stations on production lines

Installation and accessories

• Connection to 22-26 V DC via approx. 3 m cable with free stranded wire ends
• Mounting via screw-down flange, table clamp or wall bracket in black or white (accessories)
