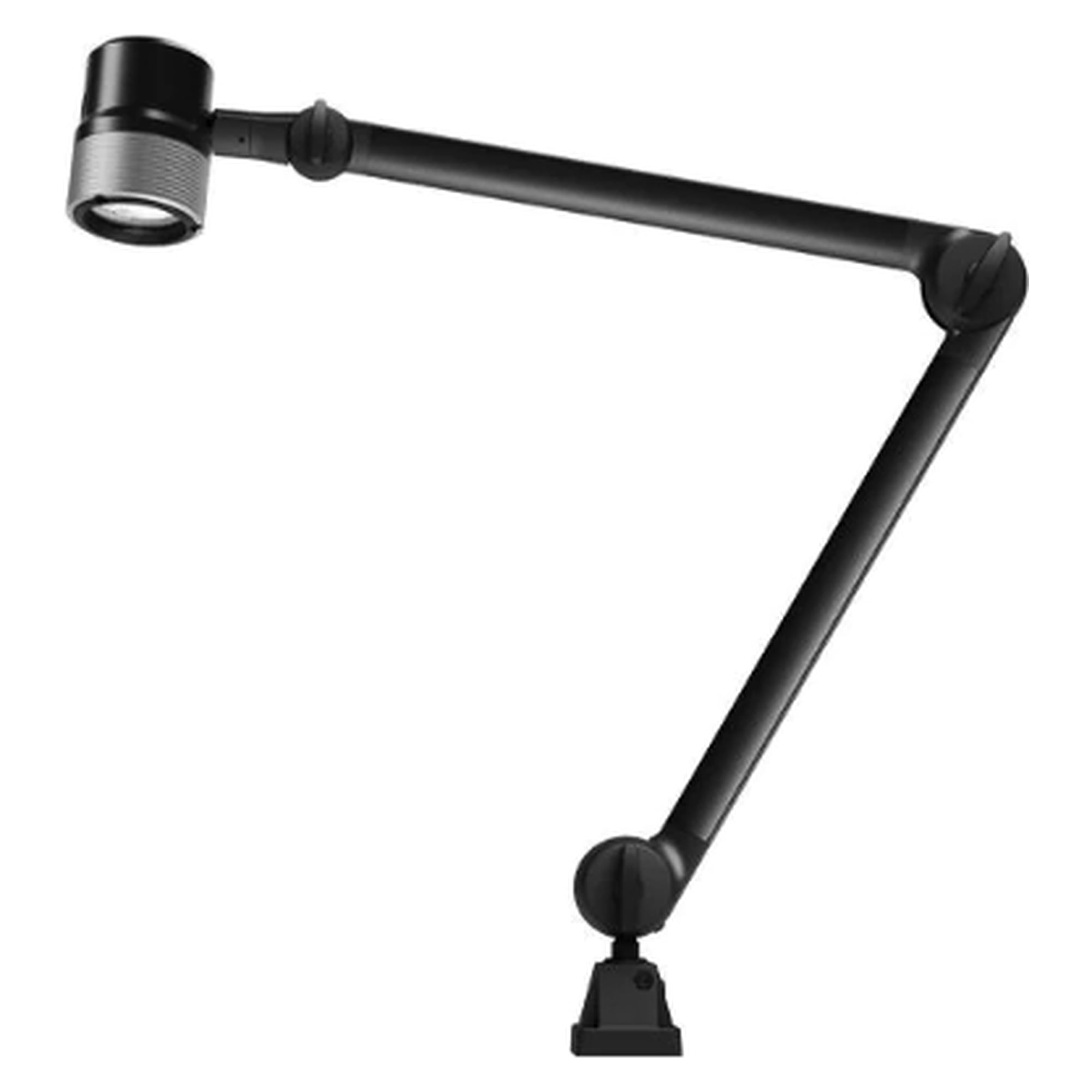

LED arm-mounted luminaire ROCIA.focus RFD 600/850/D, 10°, 600 lm, 100-240 V, spring-balanced - Waldmann 114568000-00816830

At inspection stations and machines, the luminaire should bridge a long reach and still hold its position steadily. The anodised aluminium arm is fully spring-balanced and stays exactly where it is set. The narrow 10° spot concentrates approx. 600 lm on a small area such as a cutting edge, a bore or an inspection feature. It runs on 100-240 V via an electronic transformer with 24 V secondary voltage, supplied with an approx. 5 m lead and mains plug.

Benefits

• Fully spring-balanced arm, the luminaire stays in position without readjustment
• 10° beam angle (narrow-beam), approx. 600 lm from 9 W, around 75 lm/W
• Protection IP67, protection class III, aluminium housing with borosilicate glass and Viton seal, resistant to many oils and coolants
• Switchable and continuously dimmable via push button on the luminaire
• Neutral white 5000 K with CRI ≥ 80, chromaticity tolerance < 4 SDCM, risk group RG0/1
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Machine tools and woodworking machines
• Drilling and milling where a small area must be brightly lit
• Visual inspection of individual features
• Workbenches and tables without machine voltage, connected to a mains socket

Installation and accessories

• Mounting via screw-down flange, table clamp and wall bracket available as accessories
• Mains lead approx. 5 m with CEE 7/VII mains plug
