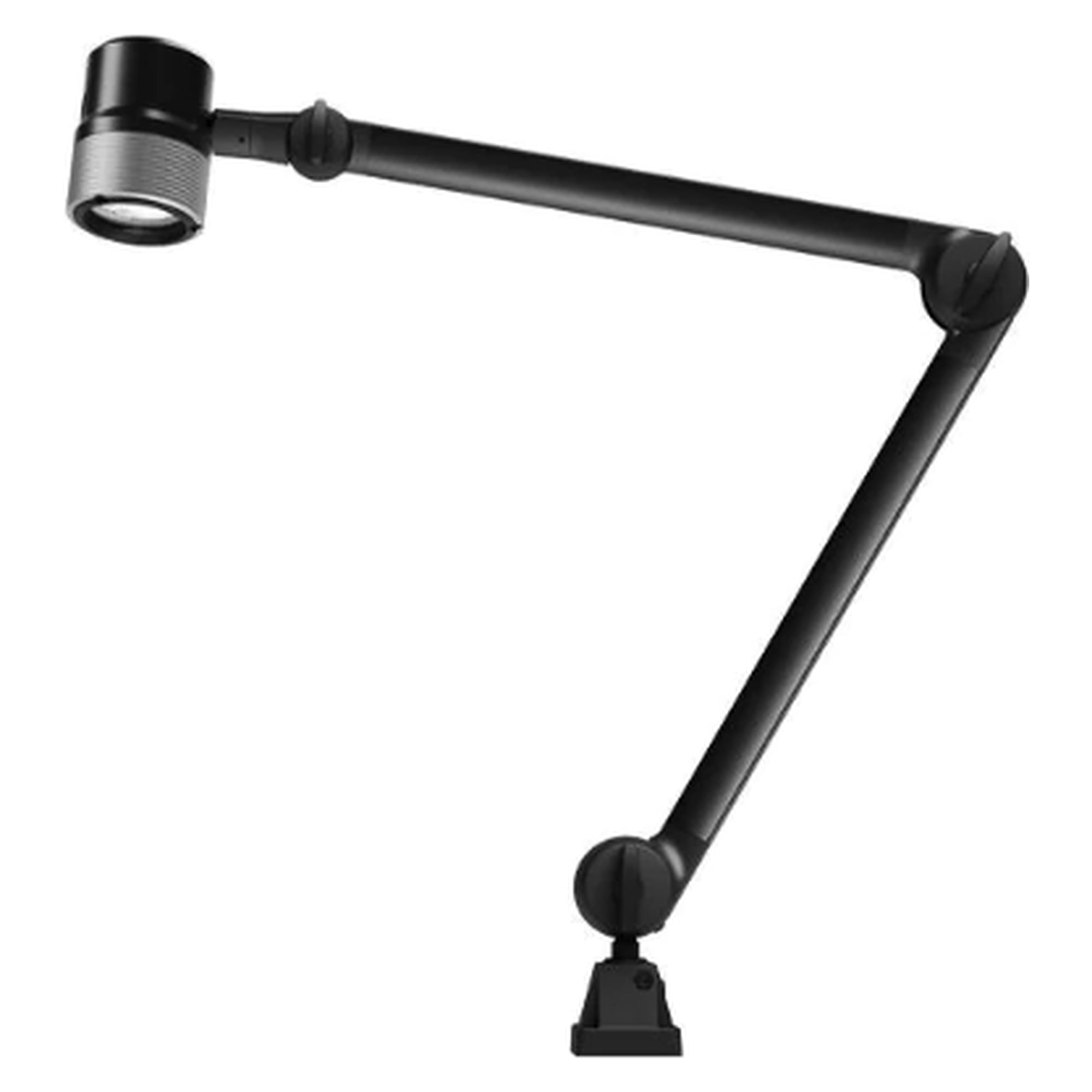

LED arm-mounted luminaire ROCIA.focus RFD 600/850/DS, 10°, 600 lm, 12-28 V AC, dimmable - Waldmann 114568000-00816831

At inspection stations and machines, the luminaire should bridge a long reach and still hold its position steadily. The anodised aluminium arm is fully spring-balanced and stays exactly where it is set. The narrow 10° spot concentrates approx. 600 lm on a small area such as a cutting edge, a bore or an inspection feature. It connects directly to the machine voltage, 12-28 V AC or 12-40 V DC, via an approx. 2.8 m lead with free stranded wires.

Benefits

• Fully spring-balanced arm, the luminaire stays in position without readjustment
• 10° beam angle (narrow-beam), approx. 600 lm from 7 W, around 75 lm/W
• Protection IP67, protection class III, aluminium housing with borosilicate glass and Viton seal, resistant to many oils and coolants
• Switchable and continuously dimmable via push button on the luminaire
• Neutral white 5000 K with CRI ≥ 80, chromaticity tolerance < 4 SDCM, risk group RG0/1
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Machine tools and woodworking machines
• Drilling and milling where a small area must be brightly lit
• Visual inspection of individual features
• Machines with control voltage in the 12-40 V DC range, installation by the machine builder

Installation and accessories

• Mounting via screw-down flange, table clamp and wall bracket available as accessories
• Mains lead approx. 2.8 m with free stranded wires for connection in the control cabinet
• Without machine voltage: matching operating devices 100-240 V to 24 V DC (30 W or 100 W) or 220-240 V to 24 V DC constant voltage available as accessories
