Diecast zinc bracket (gusset) for connecting aluminium profiles at right angles. ESD-capable and suitable for electrostatically protected areas. The set version includes the complete fastening material for slot 8 and slot 10 profiles.

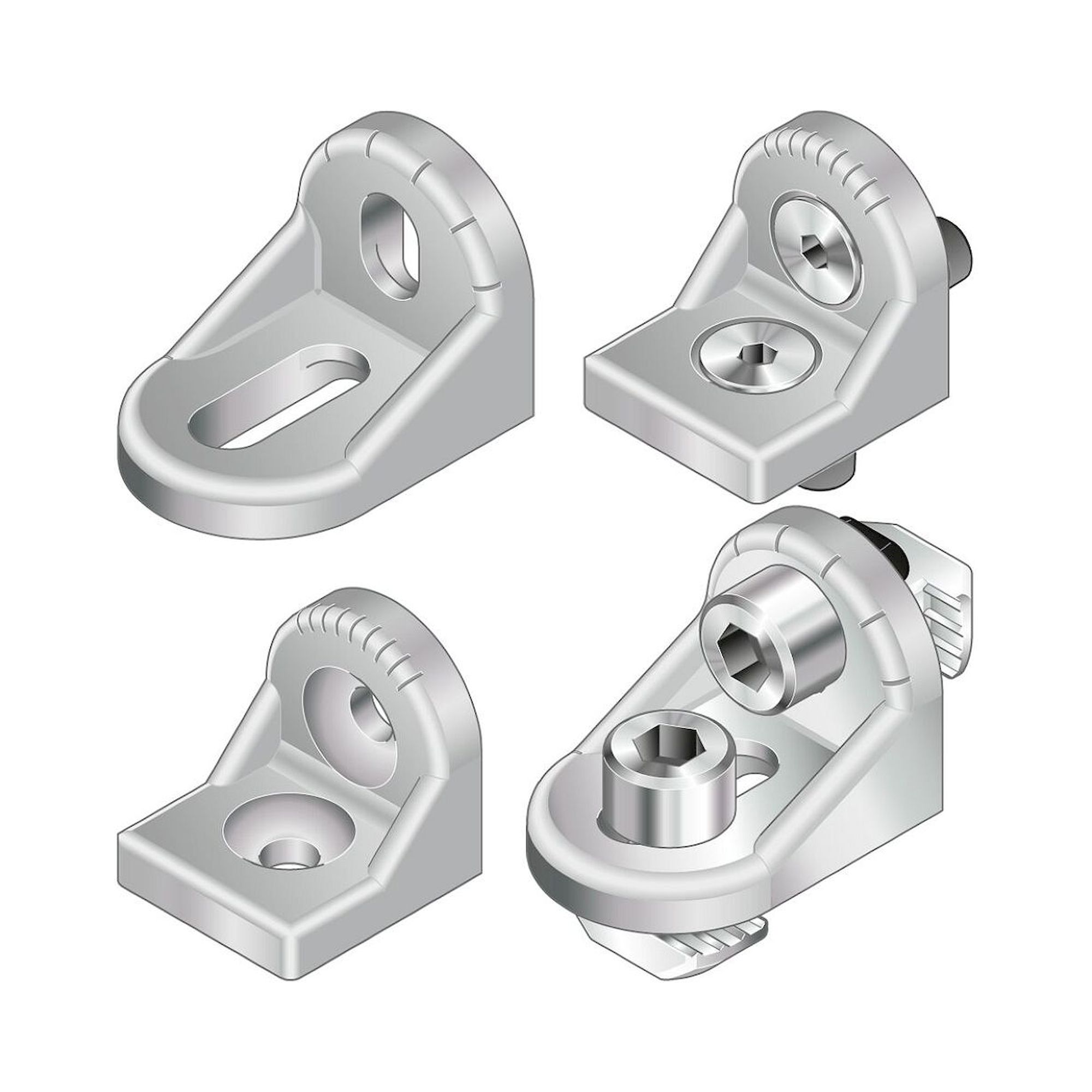

Bracket R28x38, Diecast Zinc ESD, Slot 8/10 Set - Bosch Rexroth 3842515547
BOSCH REXROTH
Original product
Net price (excl. VAT)
€7.21
Item
BRR-3842515547
Manufacturer no.
3842515547
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842515547
Country of originGermany
Customs tariff number83024900
ConditionNew
Artikel
BRR-3842515547
Frequently Bought Together
-
This Item:
€7.21
-
Swivel-in T-slot nut, slot 8, 2x M5, galvanized steel - Bosch Rexroth 3842536675
€1.91
-
Joint 30x30, ESD, Slot 8, Swivels up to 182 Degrees - Bosch Rexroth 3842502683
€20.65
Total price
The R28x38 bracket from Bosch Rexroth connects aluminium profiles at right angles and transmits loads between the profiles. This set version includes the complete fastening material for slot 8 and slot 10 profiles along with the matching intermediate elements, making it suitable for building frames and machine structures.
- Right-angle connection of aluminium profiles
- Diecast zinc body for high load capacity
- ESD-capable, suitable for electrostatically protected areas
- Complete fastening material for slot 8 and slot 10 included
Technical data
| Profile slot | 8, 10 |
| Dimensions | 28x38 |
| ESD | yes |
| Material | Diecast zinc |
| Material information | Bracket: Diecast zinc; Intermediate element: PA, black; Fastening material: Steel, galvanized |
| Fastening material included | yes |
| Scope of delivery | incl. fastening material (FS), Bracket (standard) |
| Fastening material | 1x cylinder head screw DIN 7984 M6x14, 1x washer DIN 9021 A6,4, 1x T-nut slot 8 M6, 1x cylinder head screw DIN 7984 M8x16, 1x T-nut slot 10 M8, 2x intermediate element 8/10 |
| Weight | 0.066 kg |
| Norm | DIN 7984, DIN 9021 |
|---|---|
| ESD version | ESD (antistatic) |
| Hersteller-Nr | 3842515547 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.066000 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
