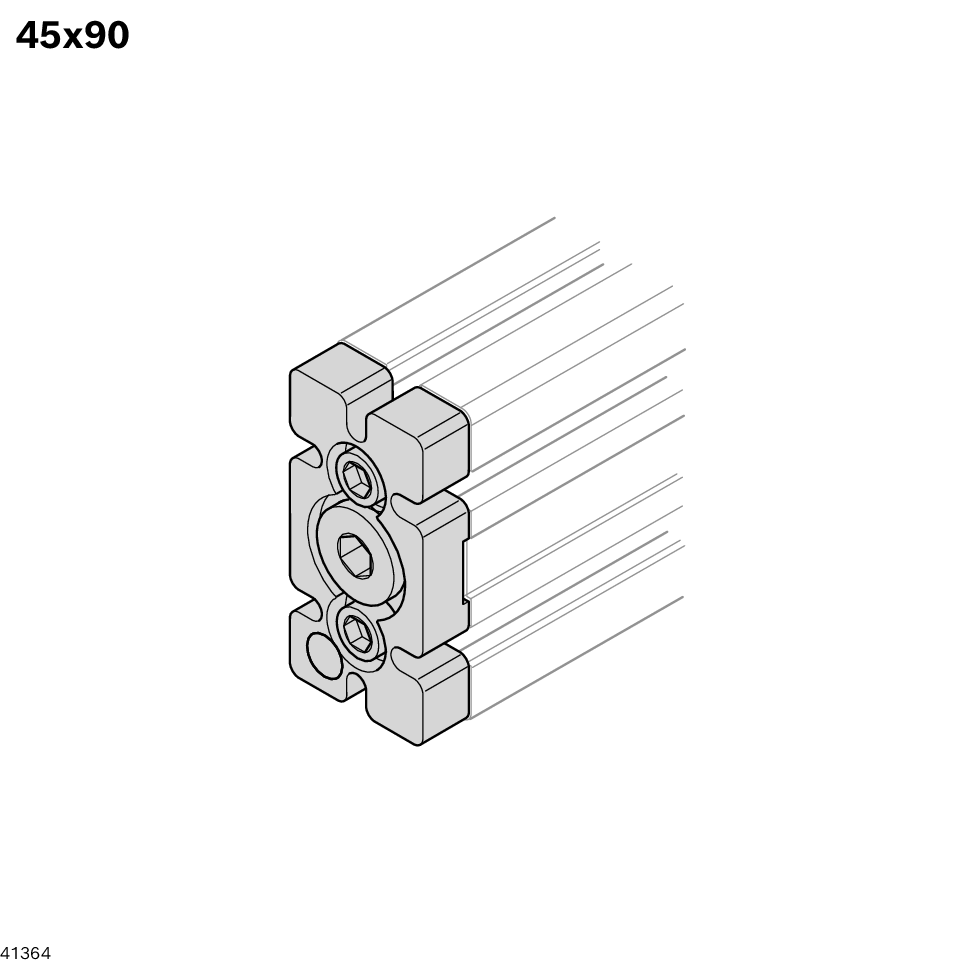

This diecast aluminum flanged plate seals the three hollow chambers of a 45x90 strut profile. It lets the profile double as a compressed-air line. Supplied with seal and fastening material.
Flanged Plate 45x90, Diecast Aluminum, Slot 10 - Bosch Rexroth 3842523097
BOSCH REXROTH
Original product
Net price (excl. VAT)
€23.98
Item
BRR-3842523097
Manufacturer no.
3842523097
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842523097
Country of originGermany
Customs tariff number83024900
ConditionNew
Artikel
BRR-3842523097
Frequently Bought Together
-
This Item:
€23.98
-
Connection Piece G1/2", Compressed Air, Slot 10 - Bosch Rexroth 3842352085
€8.41
-
Seal for End-to-End Profile Connection 45x90, Slot 10, Compressed Air - Bosch Rexroth 3842508087
€7.59
Total price
The 45x90 flanged plate seals the hollow chambers of 45x90 strut profiles (3-chamber), allowing the profile to double as a compressed-air line. It is intended for machine and assembly builders who want a profile to act as both load-bearing structure and air duct.
- Seals the profile ends so the hollow chambers can carry compressed air
- Compressed-air intake or discharge by replacing the screw plug with a pneumatic fitting
- Profile finishing: M12 thread cutting in the central holes
- Supplied with fastening material, screw plug and seal
Technical data
| Material | Diecast aluminum |
| Seal | NBR |
| Fastening material | Steel, galvanized (2x cylinder head screw DIN7984-M12x30) |
| Profile slot | 10 |
| Max. operating pressure | 8 bar |
| Weight | 0.219 kg |
| Packaging unit | 1 |
| Norm | DIN 7984 |
|---|---|
| Hersteller-Nr | 3842523097 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.219000 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
