Quick connector for size-10 aluminium profile slots, made from stainless steel. The rectangular head (17 mm diameter) locks profiles at 0° without additional drilling and is rated for a bending moment of 140 Nm. ESD-suitable; anti-torsion element recommended.
Quick Connector N10 0° VA, Stainless Steel, Bending Moment 140 Nm - Bosch Rexroth 3842548936
BOSCH REXROTH
Original product
Net price (excl. VAT)
€6.55
Item
BRR-3842548936
Manufacturer no.
3842548936
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842548936
Country of originChina
Customs tariff number83024900
ConditionNew
Artikel
BRR-3842548936
Frequently Bought Together
-
This Item:
€6.55
-
Connecting Element for Guard Profile, PA Black - Bosch Rexroth 3842305768
€3.26
Total price

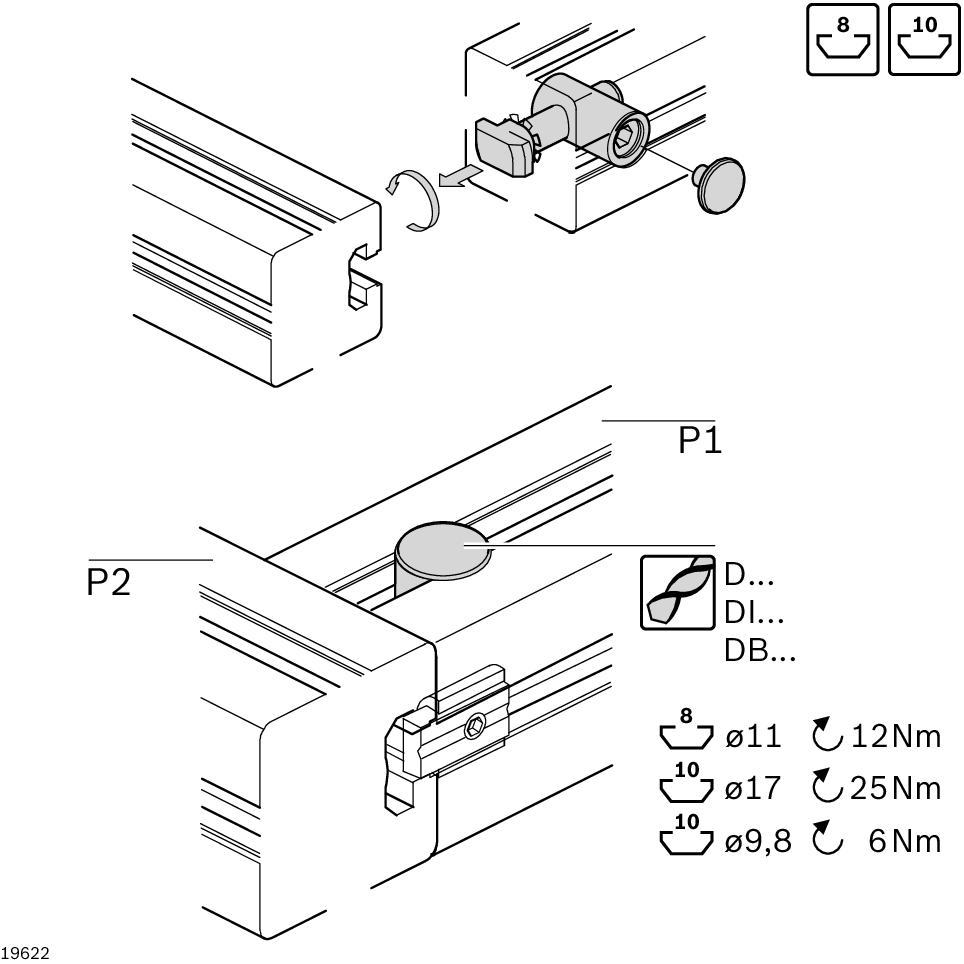

The Quick Connector N10 0° VA joins size-10 aluminium profiles in a straight (0°) orientation with no additional hole in the profile required. Stainless steel construction makes it suitable for corrosion-sensitive environments and ESD-protected assembly areas.
- High rigidity: bending moment up to 140 Nm for stable frame and machine structures
- ESD-suitable: cleared for use in electrostatic protected areas (EPA)
- Stainless steel: corrosion-resistant for cleanroom, food-grade, and wet environments
- Rectangular head (17 mm diameter): self-centering in the slot, no rotation during tightening
- Packaging unit of 10: cost-efficient for volume assembly
Technical data
| Attribute | Value |
|---|---|
| Profile slot | 10 |
| Profile slot P1/P2 | 10 / 10 |
| Mounting orientation | 0° |
| Head shape | Rectangular |
| Diameter D | 17 mm |
| Bending moment 1 | 140 Nm |
| Material | Steel, stainless |
| ESD | Yes |
| Packaging unit | 10 pcs |
| Recommended accessories | Anti-torsion element, Radial compensation, Drilling jig, Cap |
| Weight | 0.031 kg |
| ESD version | ESD (antistatic) |
|---|---|
| Hersteller-Nr | 3842548936 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | China |
| Weight | 0.031000 |
| Zolltarifnummer | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Positionserkennung | No |
