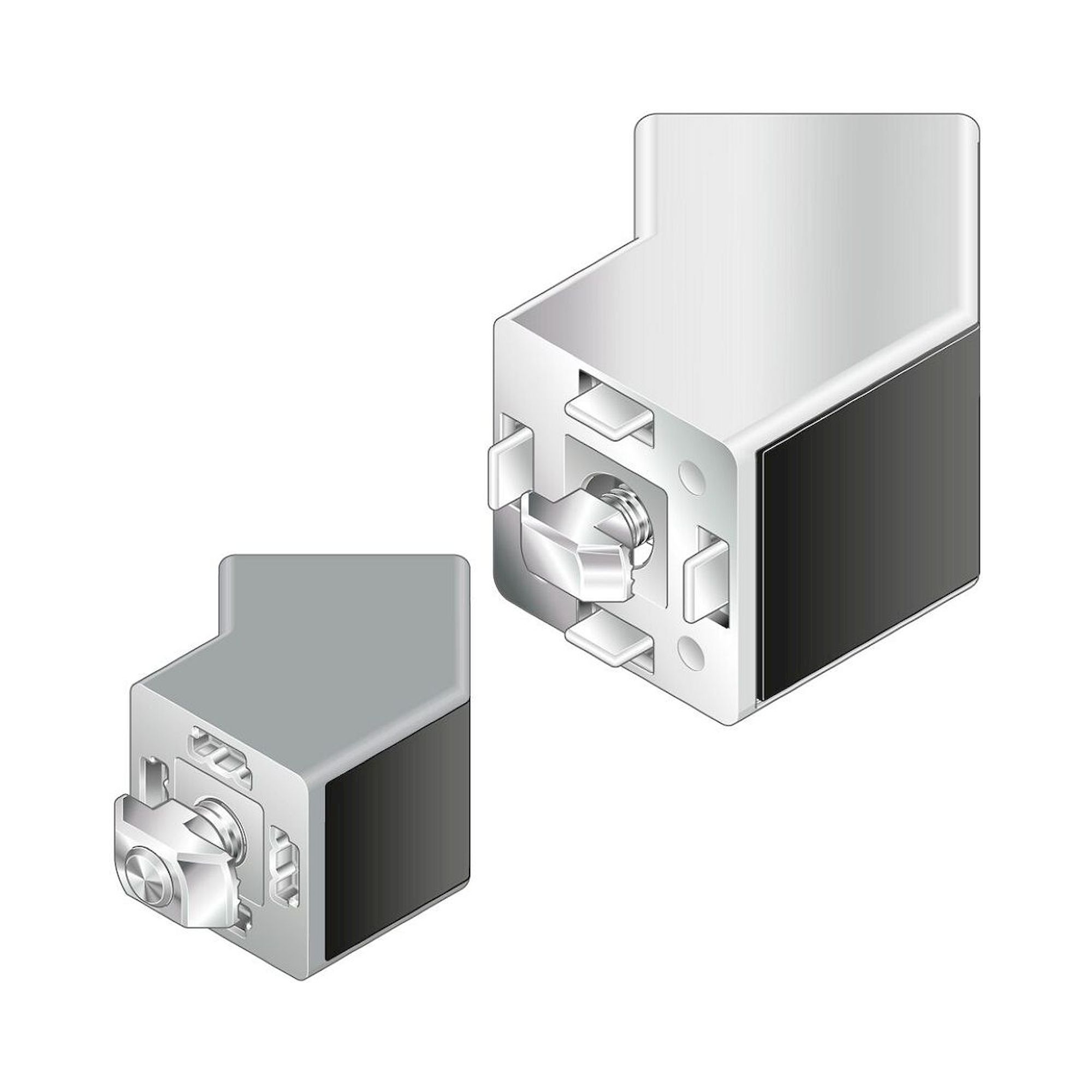

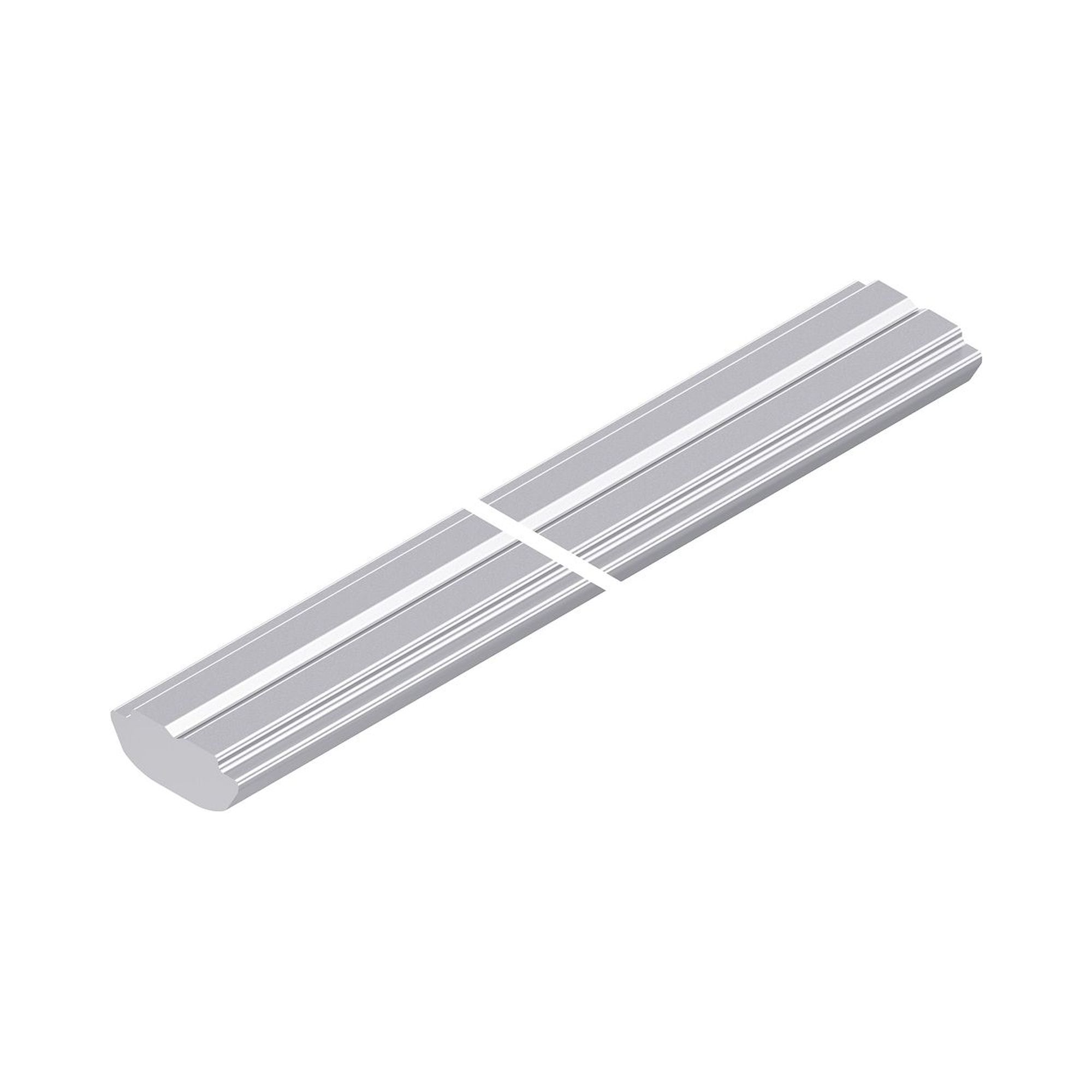

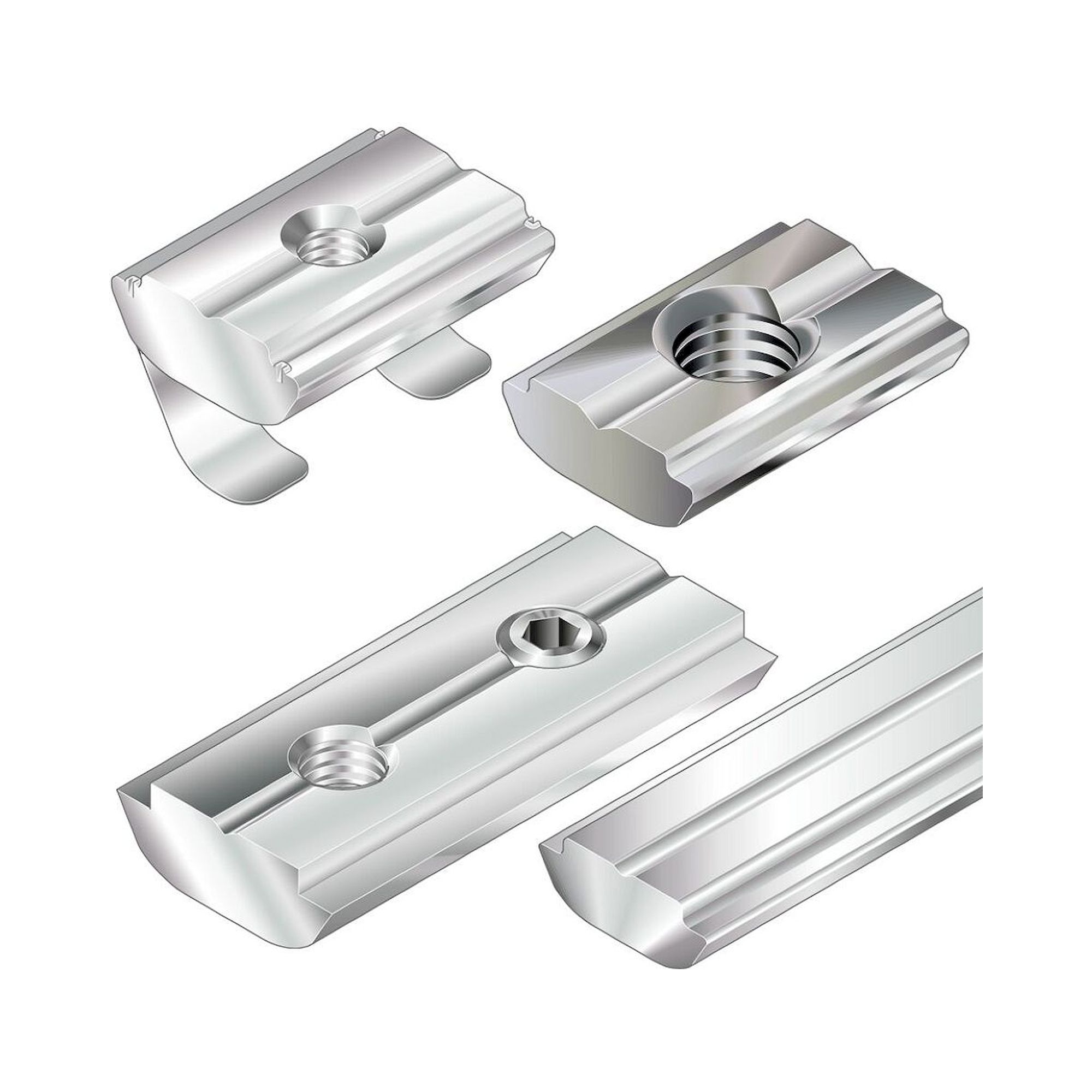

Bosch Rexroth connection elements form the load-bearing joints between strut profiles. The category covers angle connectors 45x45 and 20x40, 45 degree corner connectors in 30x30 and 45x45 (3842554447, 3842554456), quick fasteners such as 10-S/N (3842535635) and T-nuts in groove 8 with M4 thread in zinc-plated or stainless steel (3842514928, 3842547817). Many parts are ESD-conductive, made from die-cast aluminium, zinc die-cast or steel, some in designLINE white aluminium RAL 9006.
Typical applications: Connection elements join profiles into frames, structures and fixtures. Selection depends on profile size, slot pattern (8 or 10) and the required joint stiffness: angle connectors for fixed joints, quick-clamp connectors for fast releasable butt joints, T-nuts as thread carriers in the profile slot. For dissipative structures, ESD versions are combined throughout.
