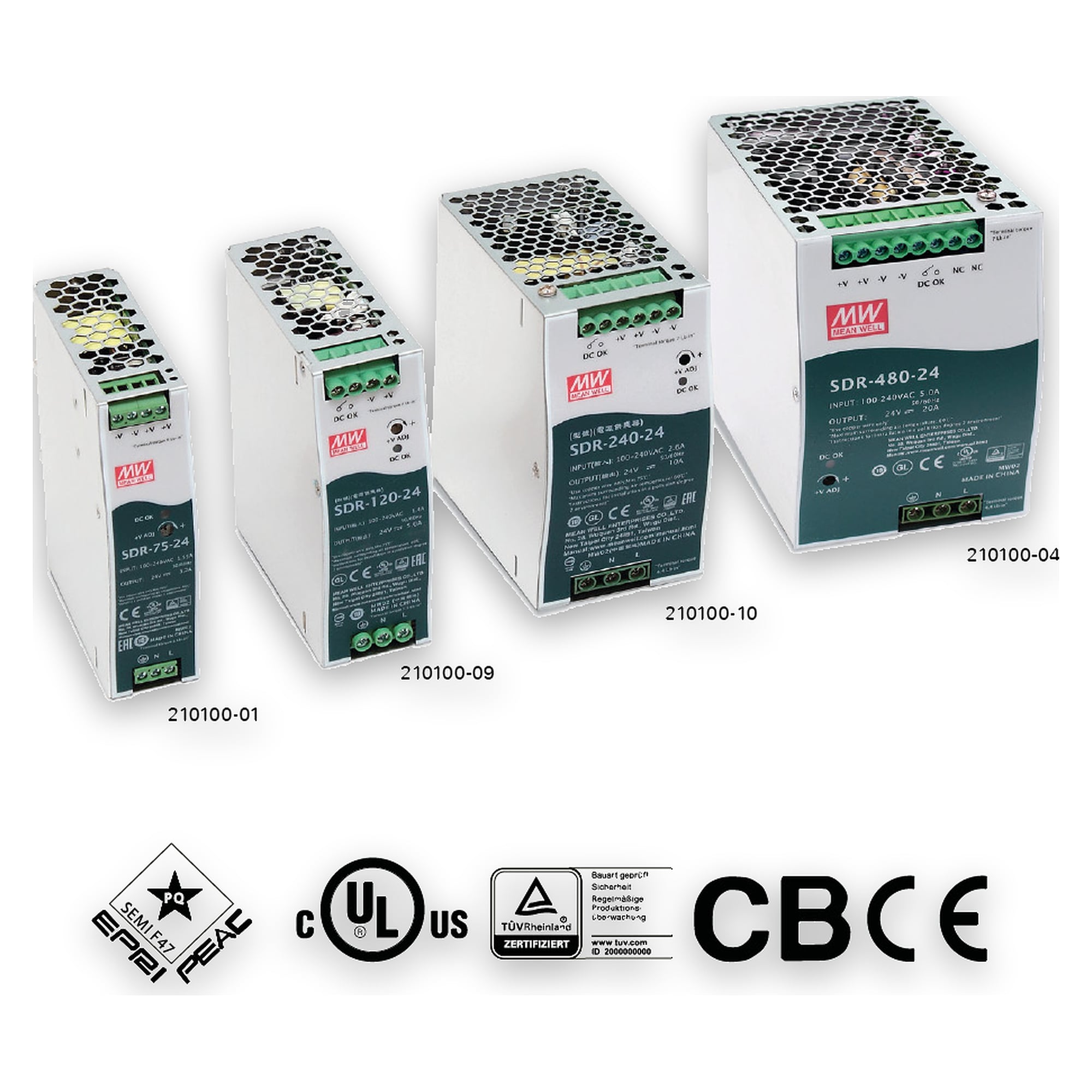

Hutschienen-Netzteil 240 W, 24 V DC, geschlossene Bauform - LED2WORK 210100-10

To power LED2WORK 24 V DC luminaires centrally from the control cabinet, this enclosed switching power supply delivers 240 W at a stable 24 V DC. It clips onto the DIN rail via screw terminals and drives several luminaires from a single source.

Key benefits

• 240 W headroom: 24 V DC at 10000 mA powers several luminaires at once.
• Wide 88 to 264 V AC input: usable worldwide, 47 to 63 Hz.
• Fourfold protection: short-circuit, overload, overvoltage and over-temperature.
• 94 % efficiency at full load: low waste heat inside the cabinet.
• Dimmable: together with the LED2WORK PWM dimmers.

Technical data

• Model: Constant-voltage power supply
• Design: DIN-rail switching power supply
• Rated output voltage: 24 V DC
• Max. output power: 240 W
• Output current: 10000 mA
• Output adjustment range: 24 to 28 V
• Input voltage: 88 to 264 V AC
• Input frequency: 47 to 63 Hz
• Overvoltage protection: 29 to 33 V DC
• Over-temperature protection: 95 °C ± 10 °C
• Efficiency at full load: 94 %
• Ambient temperature: -25 °C to +70 °C
• Humidity: 20 to 95 % (non-condensing)

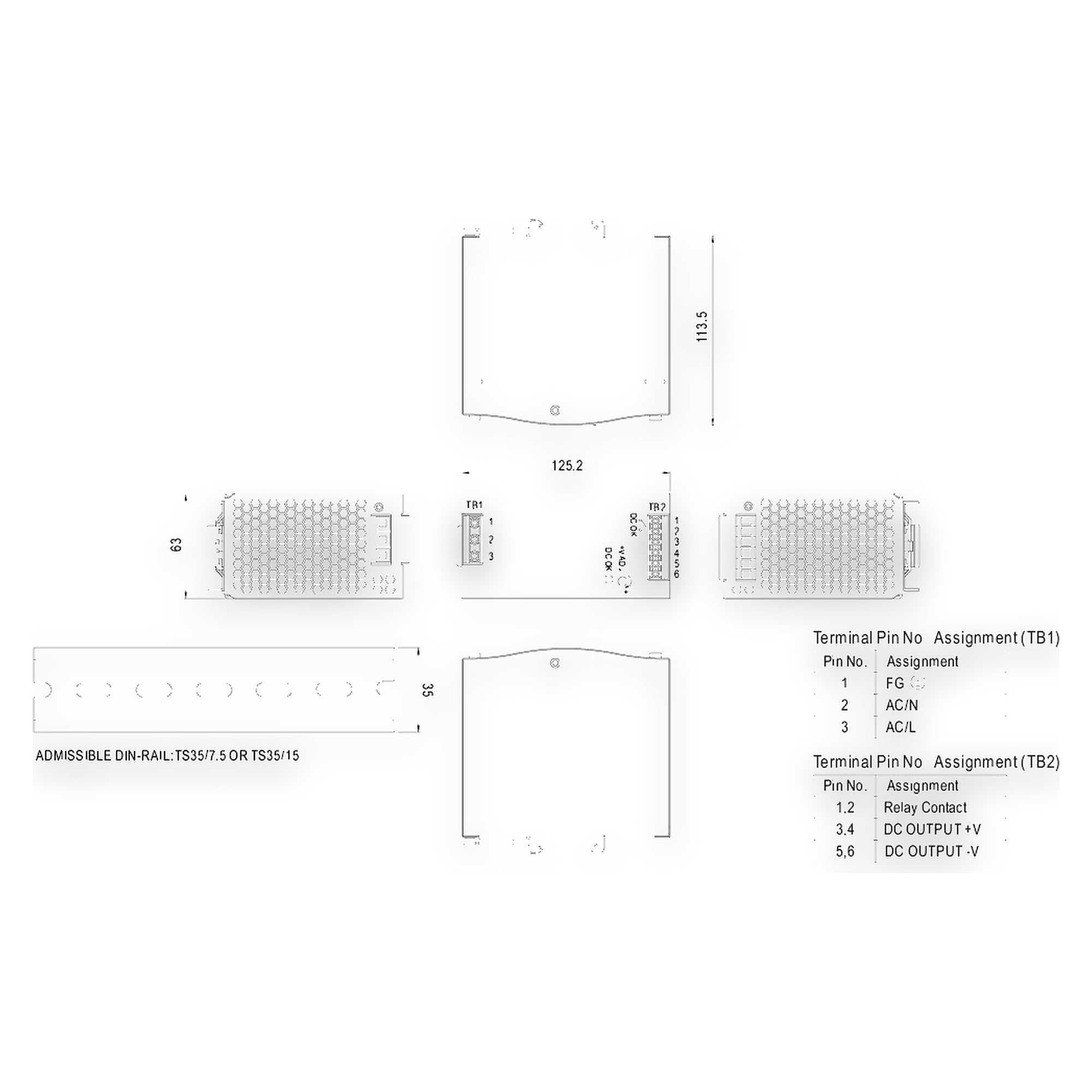

• Dimensions: 63 x 125.2 x 113.5 mm
• Weight: 1000 g
• Certifications: CE, CB, UL508 approved, ITE EN/UL/IEC 60950

Applications

Central power supply for LED2WORK machine and tube luminaires in control cabinets, machine wiring and plant engineering. Not suitable for no-load operation.

Before selecting, check the power draw and connection ratings of the luminaire so the supply offers enough headroom.
