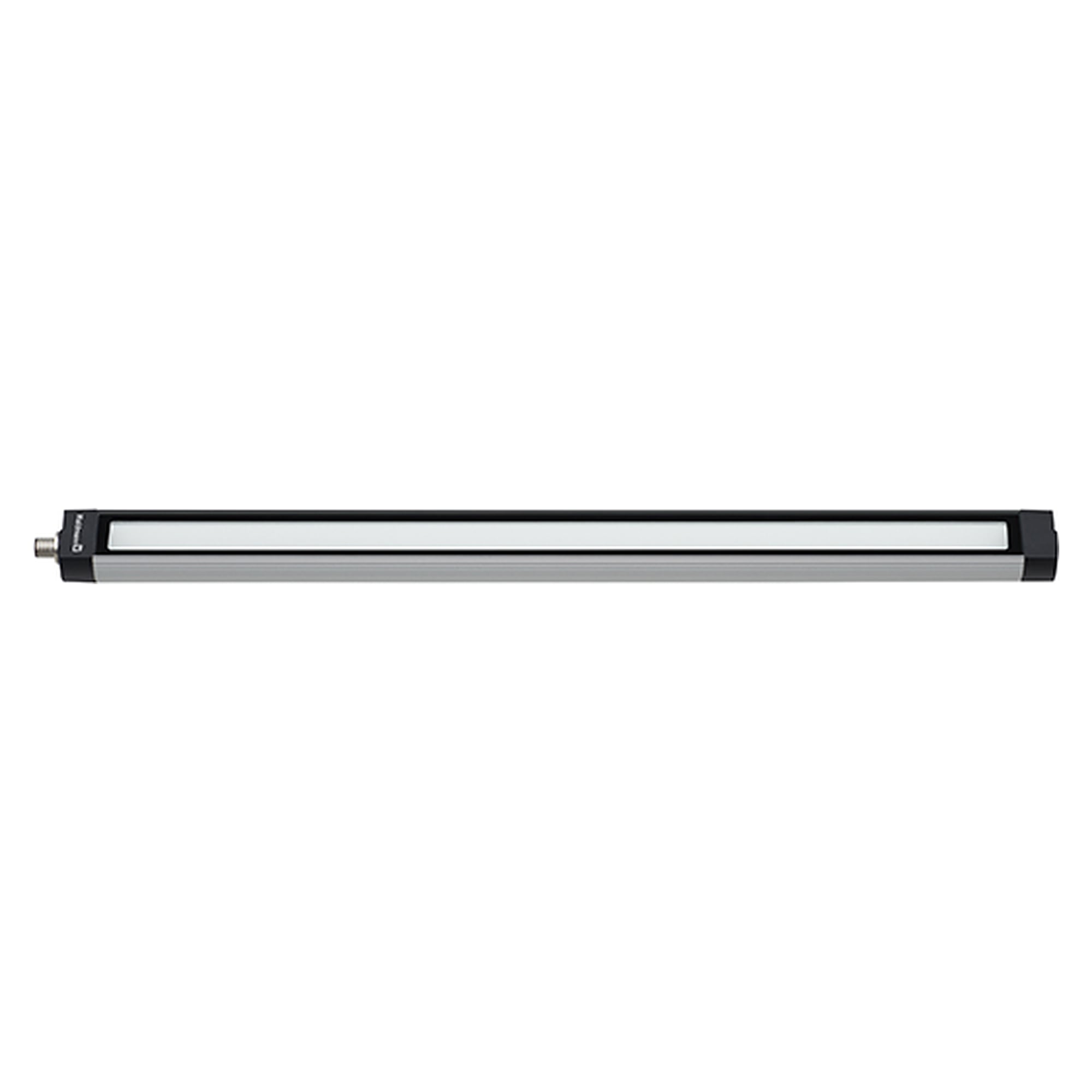

LED machine luminaire MACH LED PLUS.forty MLAL 42 S, 16 W, 1680 lm, 90°, PWM dimming - Waldmann 113163000-00662729

If the machine control should regulate the light itself or use it as a flashing signal, the MLAL 42 S with PWM interface is the right version. It brings 1680 lm at 16 W into the working area.

Benefits

• 1680 lm at 16 W (105 lm/W), length 540 mm
• A PWM signal dims the light or makes it flash, and a digital input is used for switching.
• IP67 and protection class III, housing of colourless anodised aluminium with borosilicate glass cover
• According to the manufacturer vibration-resistant at 10-55 Hz (amplitude 0.35 mm) and shock-proof up to 50 g
• 24 V DC supply (20-28 V) via M12 connector (4-pole), no driver inside the luminaire
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Working area of machine tools and machining centres
• Lathes, milling and grinding machines using coolant
• Assembly and test systems in production
• Systems with light control from the PLC, such as dimming or flashing signals

Installation and accessories

• Mounting with L-angle or clamp from the accessory range, plus luminaire bracket adjustable ±20° and luminaire bracket set adjustable ±90°
• Connection via built-in plug RSFM 4/0,05 P25-1, with matching M12 connection cable 3 m or 7 m, M12 connection socket and protective cap
• For mains voltage an operating device 100-240 V or 220-240 V to 24 V DC is available as an accessory
