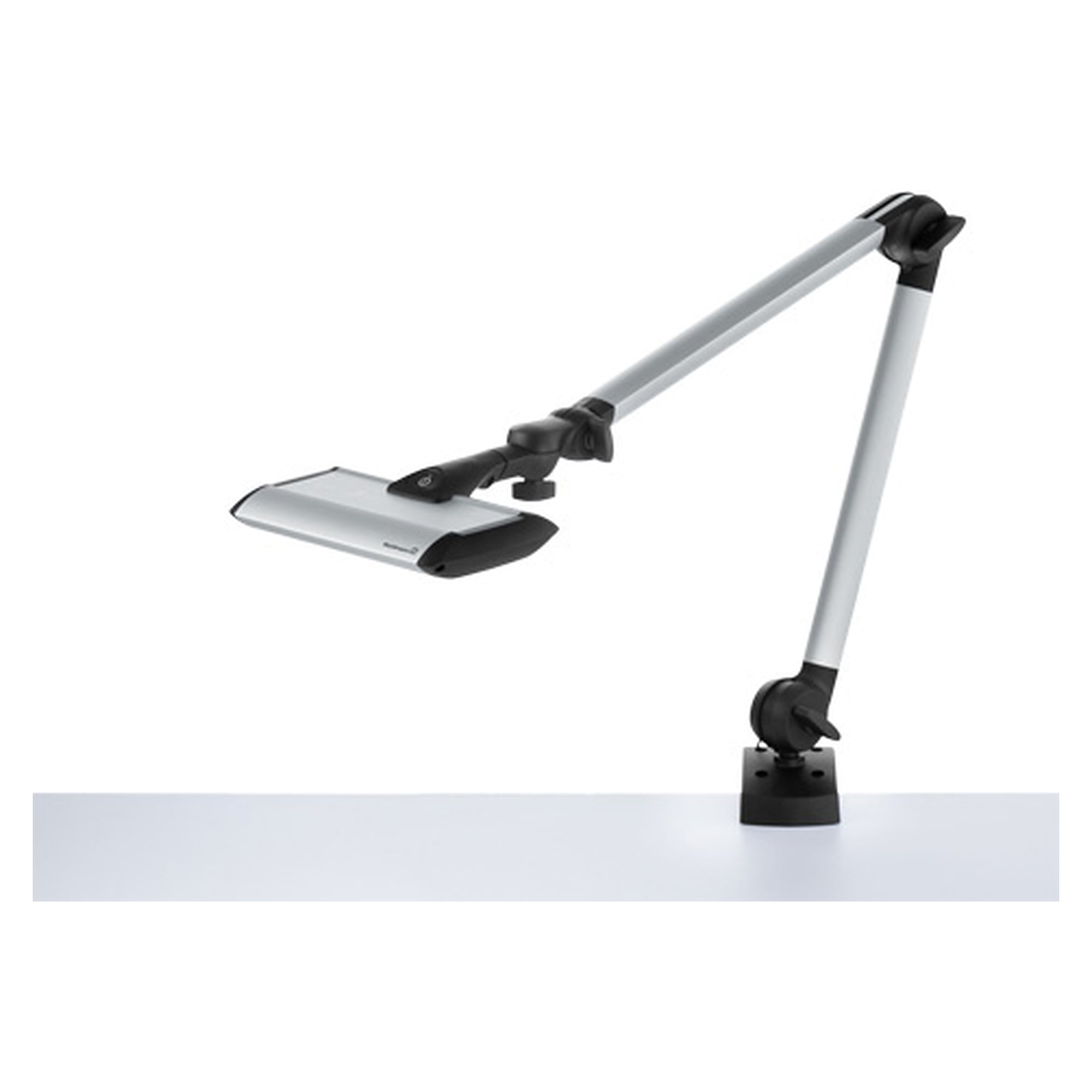

LED arm-mounted luminaire TANEO TND 700/930-965/D, 700 lm, tunable white, 75°, table base - Waldmann 113734000-00810075

Switching between warm light for long sessions and daylight white for inspection tasks at a single station does not require a second luminaire. The TANEO TND 700/930-965/D switches approx. 700 lm between 3000 and 6500 K and focuses them into 75° through its structured cover.

Benefits

• Adjustable white: 3000, 4000, 5000 or 6500 K selectable at the switch, colour rendering CRI ≥ 90 and R9 ≥ 50 at every setting.
• Structured cover and 75° beam angle focus the light on the task, luminance L65 ≤ 12,000 cd/m², UGR ≤ 25.
• Touch DIM: multi-function switch in the luminaire head for switching and continuous dimming right at the light source.
• Table base: set it down and plug it in. No drilling or clamping, the luminaire moves with the workstation.
• Approx. 700 lm at approx. 10 W secondary and approx. 70 lm/W, enough light for detailed work right under the head.
• 20-year Waldmann manufacturer's warranty, including LED light source and driver (Waldmann general warranty terms, purchase in the EEA)

Applications

• Electronics manufacturing
• Workstations handling changing materials and surfaces
• Assembly and test stations in shift operation
• Laboratory and analysis

Installation and accessories

• Fastening: table base
• Mains 100-240 V, 50/60 Hz via power supply (24 V secondary), lead approx. 3 m with mains plug CEE 7/XVI, BS 1363, NEMA 5-15P
• Series accessories: TANEO wall bracket, magnifier 3.5 dpt (ø 132 mm, plastic lens), magnifier 4 dpt (100 x 50 mm, glass lens)
