TUBELED_40 II RGB-W ECO Machine and Signal Light 280 mm, 100° - LED2WORK 118190-02
LED2WORK
✓ Original product Brand new Made in Germany
TUBELED_40 II RGB-W ECO LED hybrid light for lighting and signalling. White LED chips deliver 1150 lm at 7 W, RGB chips signal states by flashing or colour change. IP67/IP69K protection, made in Germany.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The TUBELED_40 II RGB-W ECO lights and signals from a single fixture: white LED chips deliver 1150 lm at 7 W for workplace illumination, while additional RGB chips signal status changes by flashing or colour change. The low-profile light is oil-resistant, chip-impact-proof and CNC-suitable.
Your benefits
- Lighting and signalling in one fixture saves installation space
- White illumination of 1150 lm at 7 W

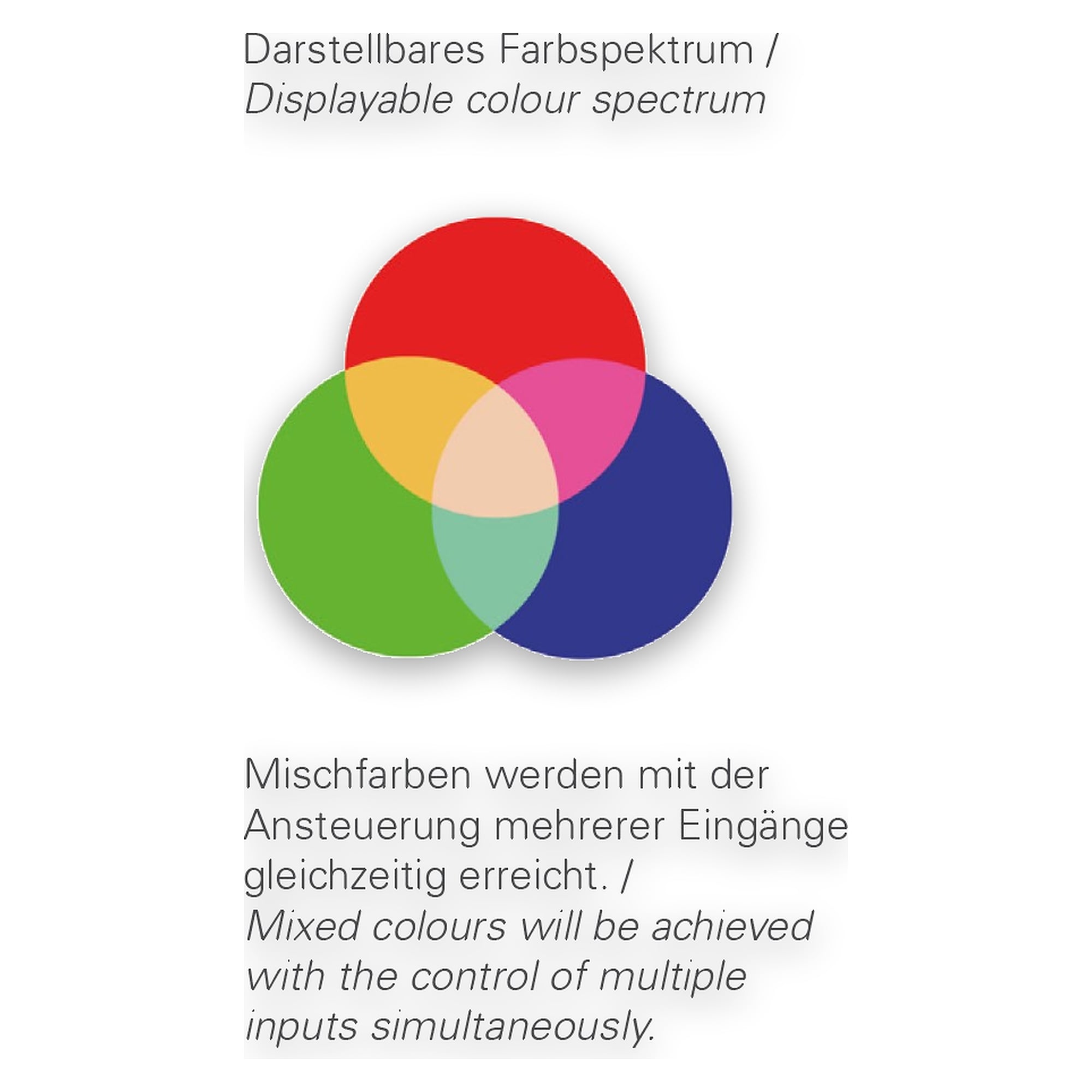

- Signal function via RGB chips through flashing or colour change
- IP67/IP69K protection, oil-resistant and chip-impact-proof
- Low-profile build at just 29 mm, CNC-suitable
- Long service life of more than 100,000 h (L80/B10)
Applications
For combined illumination and colour signalling of status changes in machine and equipment work areas.
Technical data
| Model | TUBELED_40 II RGB-W ECO |
|---|---|
| Design | LED surface-mounted light |
| Light source | SMD RGB-W Cluster LED |
| Power white | ~7 W |
| Luminous flux white | 1150 lm |
| Light colour white | 5000K 3-step MacAdam |
| Colour rendering white (Ra) | >85 |
| Power red | ~2,2 W |
| Luminous flux red | 138 lm |
| Power green | ~1,4 W |
| Luminous flux green | 252 lm |
| Power blue | ~2,2 W |
| Luminous flux blue | 84 lm |
| Beam angle | 100° |
| Supply voltage | 24 V DC -10 %+7 % (RGB) / 24 V DC ±10 % (W) |
| Connection | M12 A-kodiert, 5-pin |
| Protection rating | IP67/IP69K |
| Protection class | III |
| Operating temperature | -30 °C to +70 °C |
| Service life | > 100.000 h (L80/B10) |
| Housing | aluminium |
| Cover | Sicherheitsglas, sprungsicher |

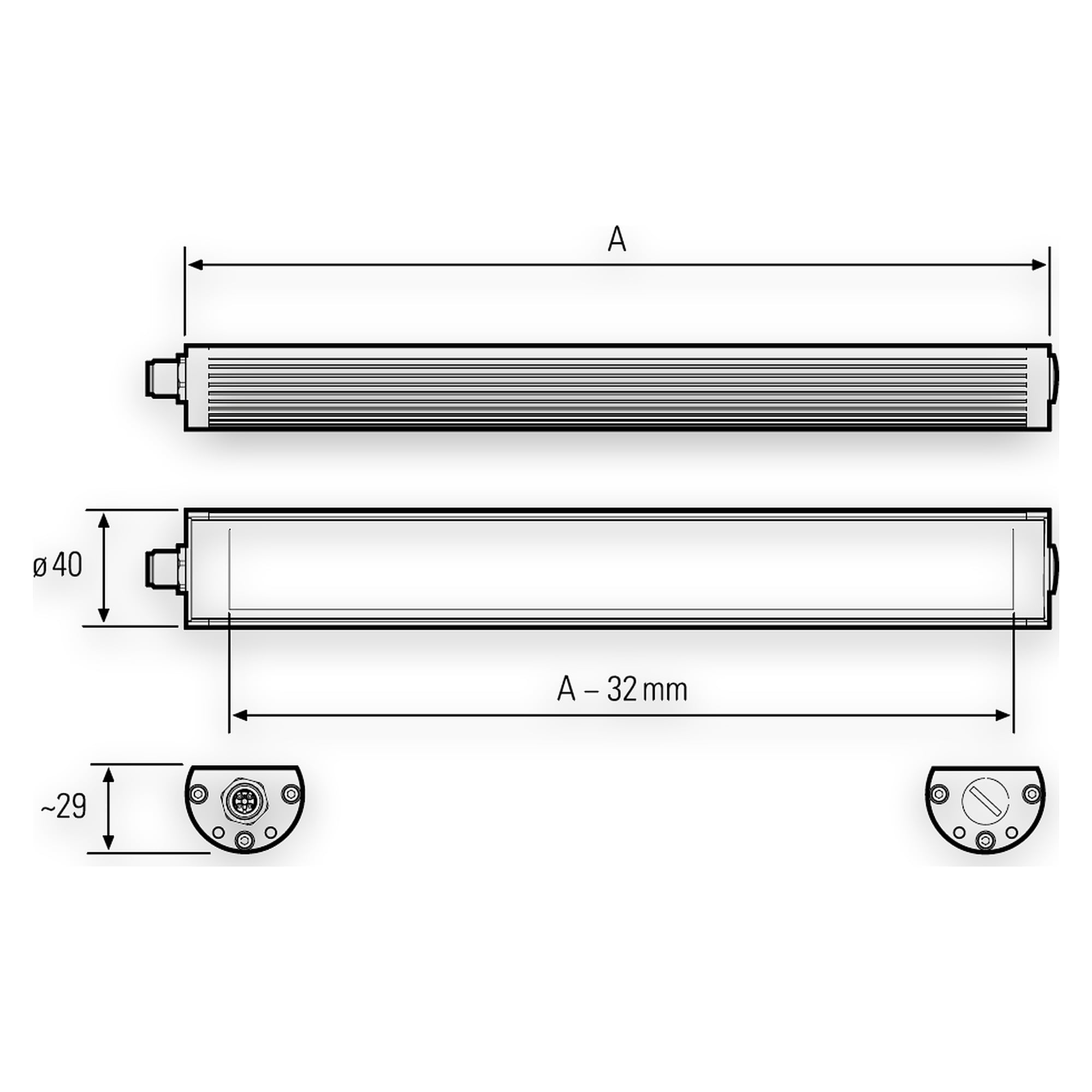

| Dimensions | 280 mm x 40 mm x 29 mm |
| Weight | 400 g |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA, ETL Listed (5003529), D-Kennzeichnung |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Hersteller-Nr | 118190-02 |
| Zolltarifnummer | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Norm | DIN EN 62471 |
| Lichtstrom (Lumen) | 1150 lm |
| Power | 7 W |
| Colour temperature | 5000K |
| Abstrahlwinkel | 100° |
| Montageart | Anbauleuchte |
| Operating voltage | 24 V |
