TUBELED_40 II RGB-W ECO Maschinenleuchte 540 mm, Signalfunktion, IP69K - LED2WORK 118390-02

The TUBELED_40 II RGB-W ECO brightly lights a machine and reports its status by colour from a single device. The 29 mm low-profile housing delivers 2300 lm of white working light and switches to an RGB signal colour when needed.

Key benefits

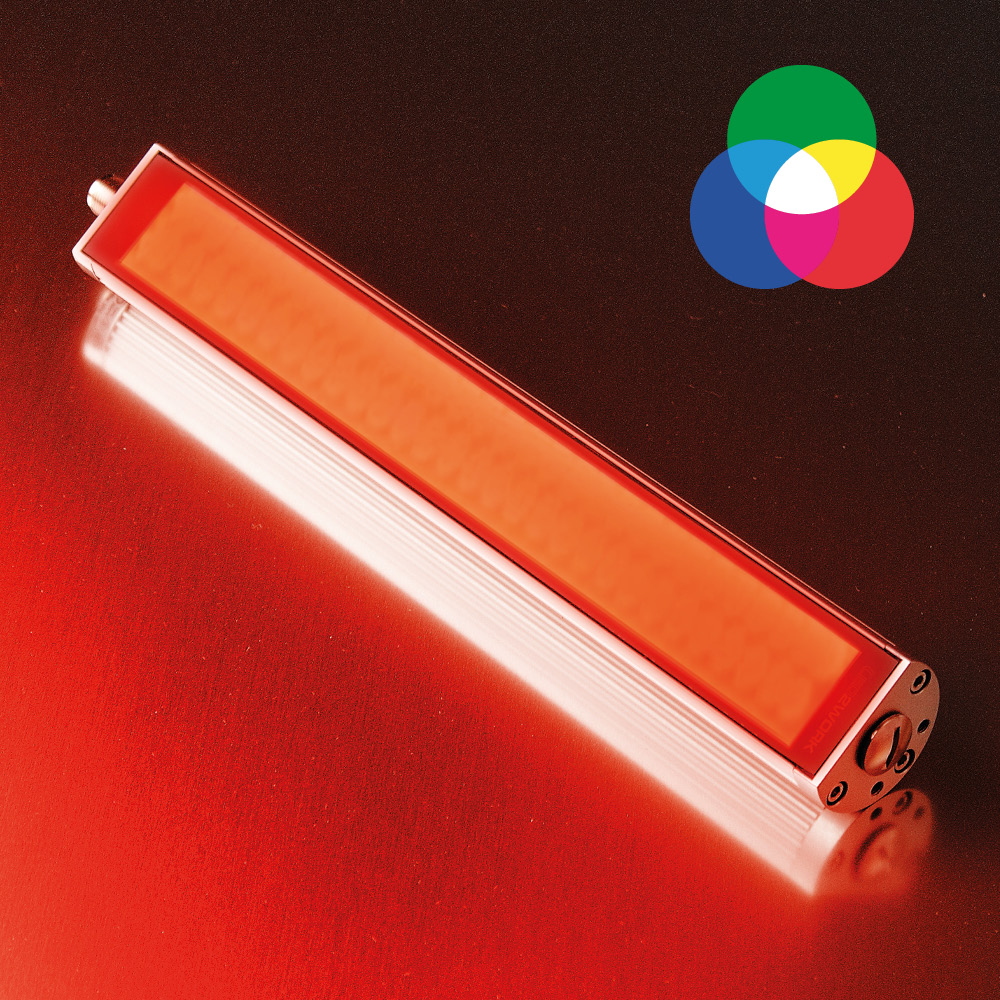

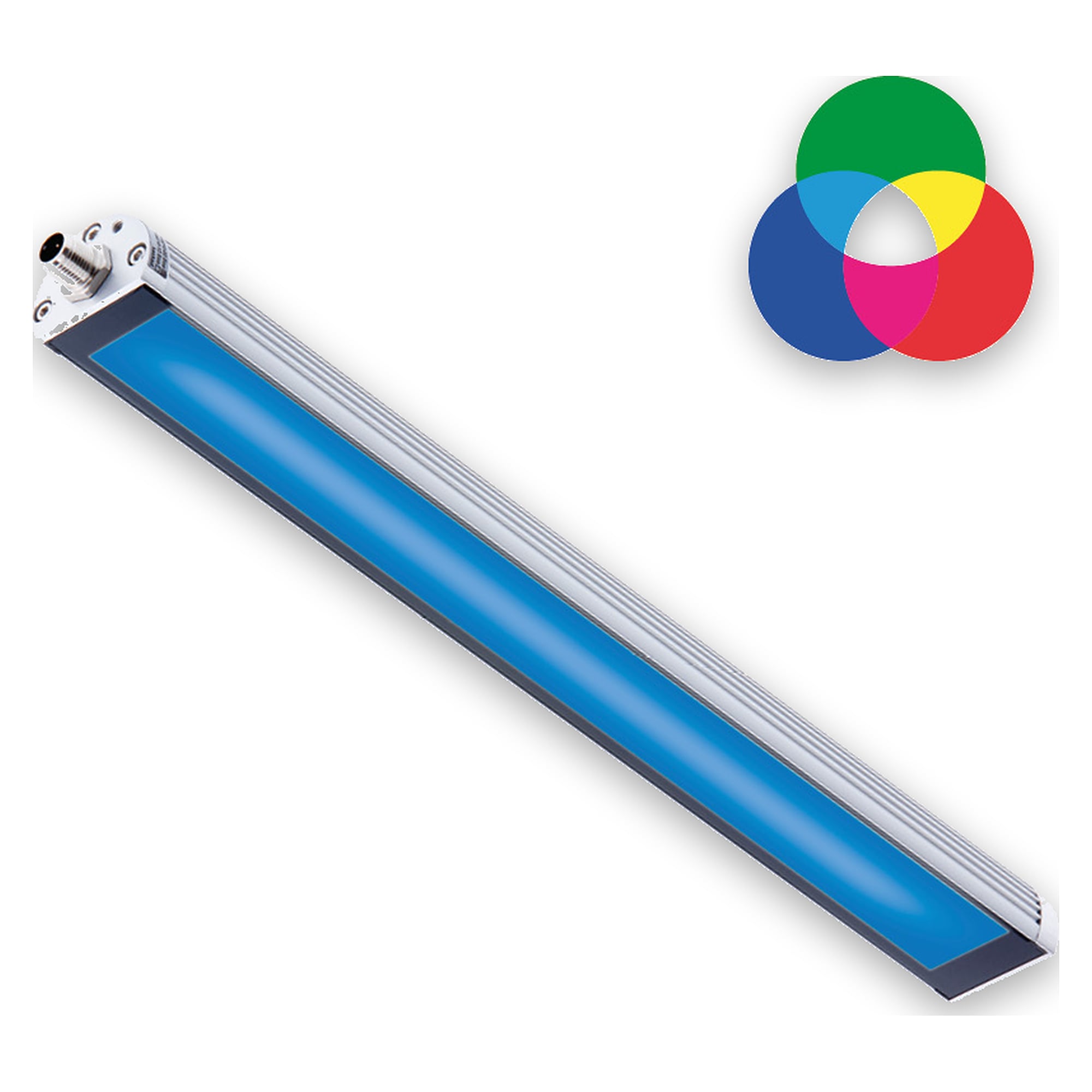

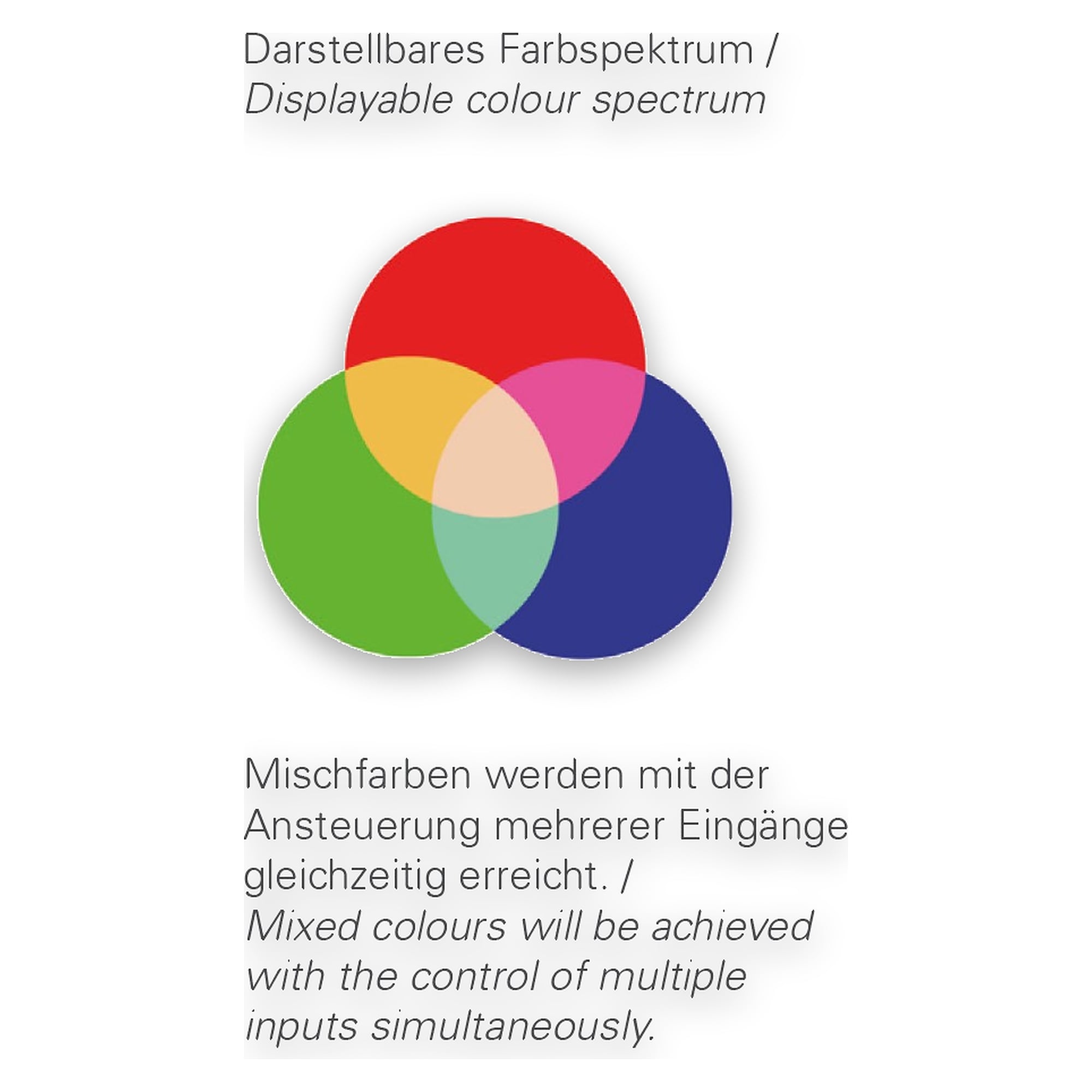

• 2300 lm white working light with RGB signalling by flashing or colour change
• Reports status changes such as cycle end or fault right at the work area
• IP67/IP69K rating, oil-resistant and chip-impact-proof, fully CNC-ready
• Only 29 mm low-profile, aluminium housing with shatter-resistant safety glass
• Service life over 100,000 h (L80/B10), made in Germany

Technical data

• Model: TUBELED_40 II RGB-W ECO
• Design: LED surface-mounted light
• Light source: SMD RGB-W cluster LED
• White power: ~14 W
• White flux: 2300 lm
• White efficacy: ~165 lm/W
• Red power: ~4,3 W
• Red flux: 276 lm
• Green power: ~2,9 W
• Green flux: 504 lm
• Blue power: ~4,3 W
• Blue flux: 168 lm
• White light colour: 5000K 3-step MacAdam
• White colour rendering (Ra): >85
• Light distribution: Light Forming Technology
• Supply voltage: 24 V DC -10 %+7 % (RGB), 24 V DC ±10 % (W)
• Connection: M12 A-coded
• Number of pins: 5
• Protection rating (IP): IP67/IP69K
• Protection class: III
• Glare control: Diffuser, toughened safety glass
• Beam angle: 100°
• Operating temperature: -30 °C - +70 °C
• Service life: > 100.000 h (L80/B10)
• Housing material: Aluminium
• Cover material: Safety glass, shatter-resistant

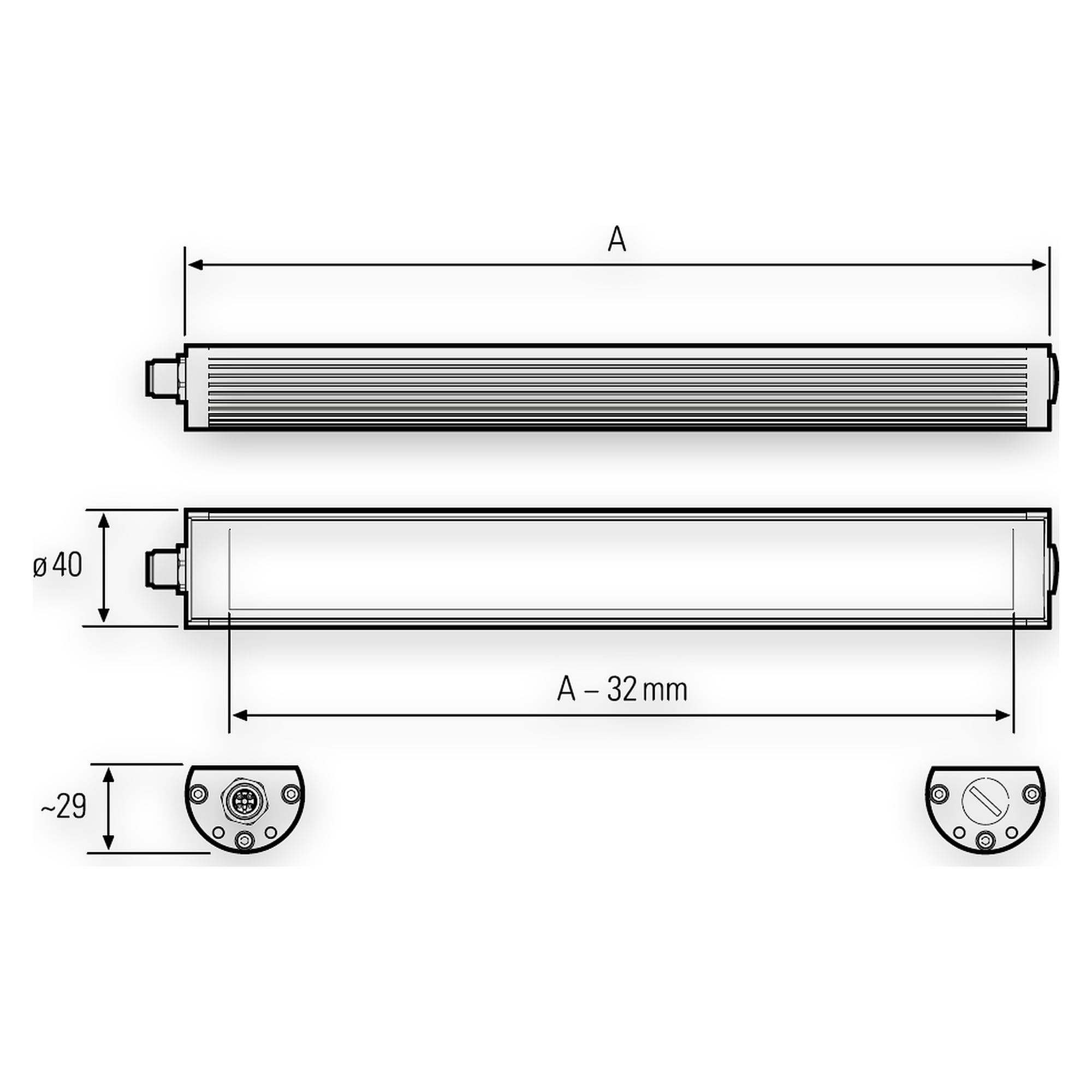

• Dimensions: 540 mm x 40 mm x 29 mm
• Weight: 650 g
• Risk group (DIN EN 62471): Exempt group
• Certifications: CE, UKCA, ETL Listed (5003529), D-Kennzeichnung
• Made in: Germany

Applications

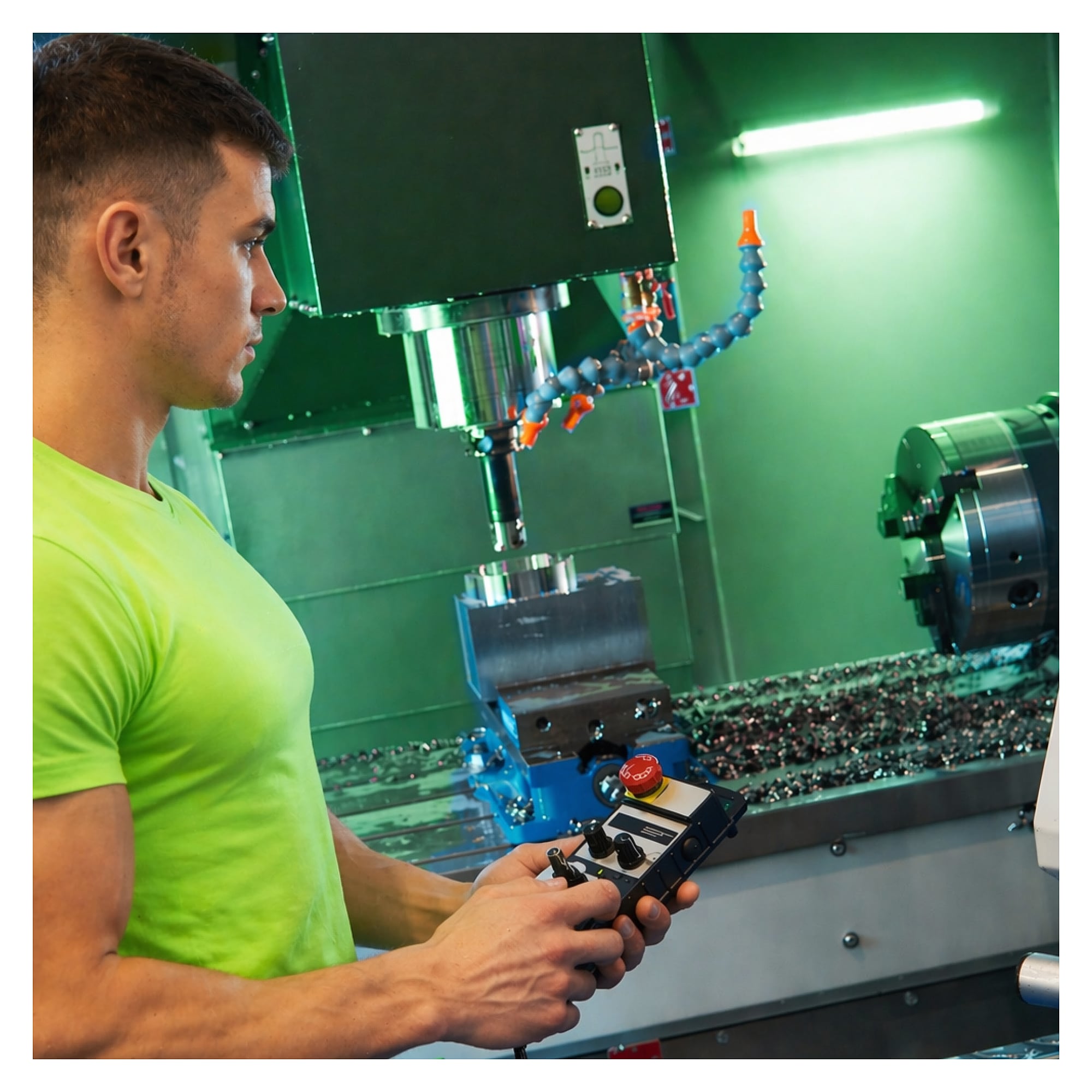

Suited to interior lighting of machine tools, CNC centres and production cells where status changes need to be signalled by colour.

Certifications: CE, UKCA, ETL Listed (5003529), D-Kennzeichnung. Risk group per DIN EN 62471: exempt group. Made in Germany.
