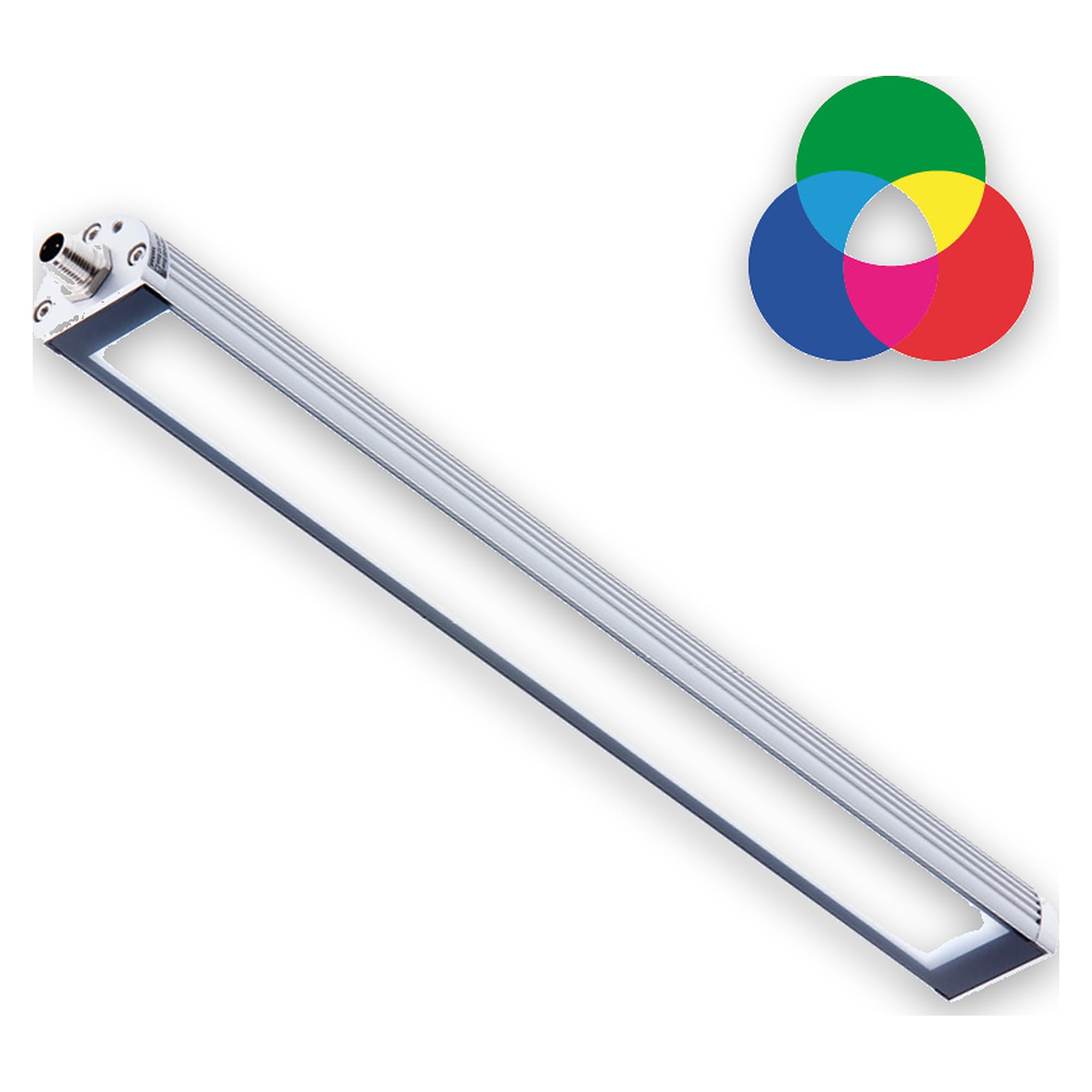

TUBELED_40 II RGB-W ECO LED machine light 1540 mm, signal function - LED2WORK 118690-02
LED2WORK
✓ Original product Brand new Made in Germany
LED hybrid luminaire for lighting and signalling in one unit. The ECO variant delivers 6900 lm of daylight-white light plus coloured RGB signalling by flashing or colour change, slim surface-mount and rated IP67/IP69K.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The TUBELED_40 II RGB-W ECO combines workplace lighting and coloured signalling in one slim surface-mounted machine light. The power-optimised ECO variant delivers 6900 lm of daylight white at 5000K and signals status changes via RGB LED chips by flashing or changing the light colour.
Your benefits
- Lighting and signalling with a single luminaire
- 6900 lm of white light at 5000K plus red, green and blue signalling

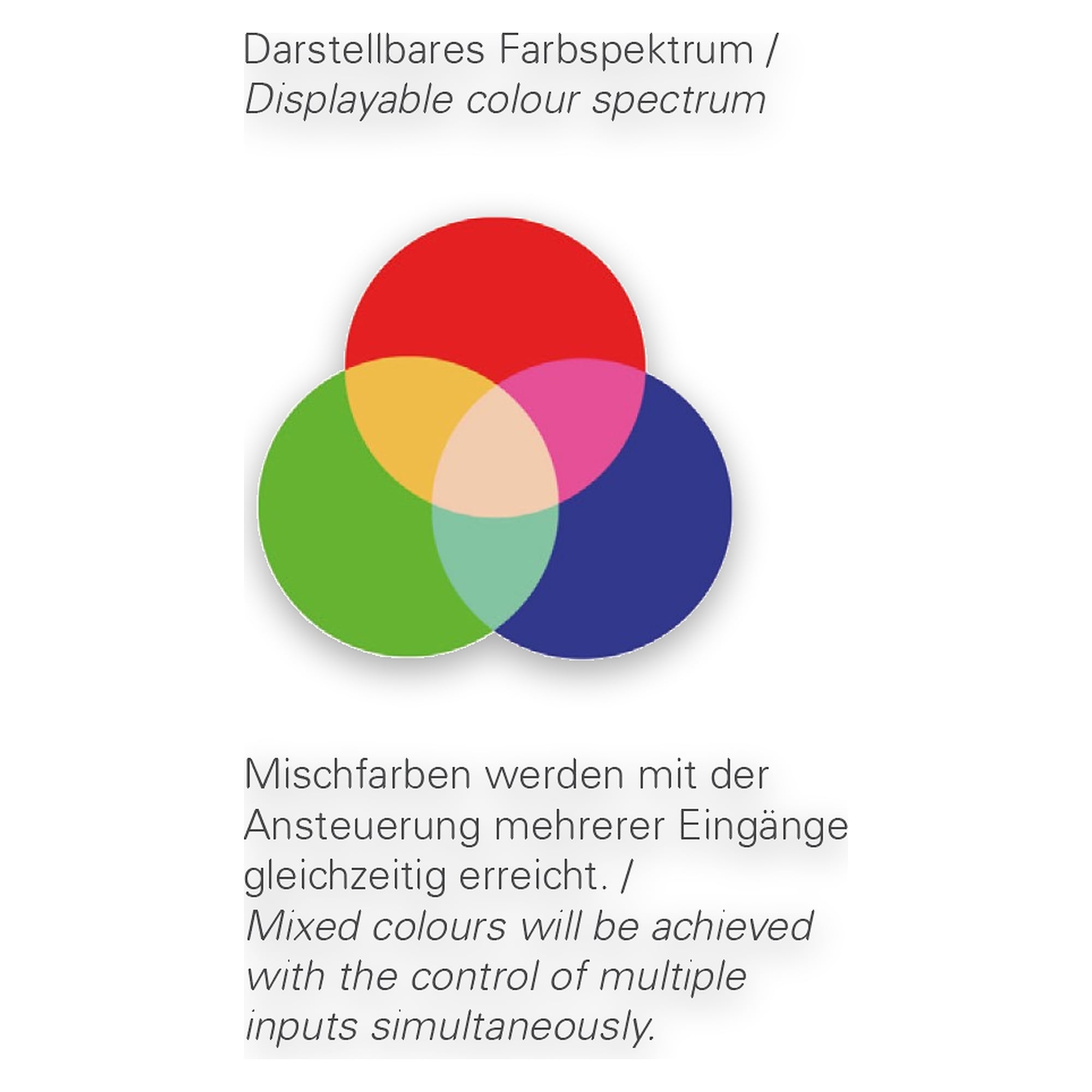

- Signal function by flashing or changing the light colour
- IP67/IP69K rating, resistant to oil and coolant and safe against flying chips
- Slim surface-mount at just 29 mm height, CNC-suitable
- Long service life of over 100,000 h (L80/B10)
Applications
For lighting and simultaneously signalling status changes in the working areas of machines and plant, such as process end, fault or status change. Mounting accessories optional.
Technical data
| Model | TUBELED_40 II RGB-W ECO |
|---|---|
| Type | LED surface-mounted light |
| Light source | SMD RGB-W cluster LED |
| Power white | ~42 W |
| Luminous flux white | 6900 lm |
| Luminous efficacy white | ~165 lm/W |
| Power red | ~13 W, 828 lm |
| Power green | ~8.7 W, 1512 lm |
| Power blue | ~13 W, 504 lm |
| Light colour white | 5000K 3-step MacAdam |
| Colour rendering white | Ra >85 |
| Beam angle | 100° |
| Supply voltage | 24 V DC -10 %/+7 % (RGB), 24 V DC ±10 % (W) |
| Connection | M12 A-coded, 5-pin |
| Protection rating | IP67/IP69K |
| Protection class | III |
| Operating temperature | -30 °C to +70 °C |
| Service life | > 100,000 h (L80/B10) |
| Housing | aluminium |
| Cover | safety glass, shatterproof |
| Dimensions | 1540 mm x 40 mm x 29 mm |
| Weight | 2020 g |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA, ETL Listed (5003529), D mark |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Hersteller-Nr | 118690-02 |
| Zolltarifnummer | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Norm | DIN EN 62471 |
| Lichtstrom (Lumen) | 6900 lm |
| Power | 42 W |
| Colour temperature | 5000K |
| Farbwiedergabe (Ra) | Ra 85 |
| Abstrahlwinkel | 100° |
| Montageart | Anbauleuchte |
| Operating voltage | 24 V |
Downloads
User Manual
Catalogue
