TUBELED_40 II RGB-W ECO machine light 1040 mm, signalling, IP69K - LED2WORK 118590-02
LED2WORK
✓ Original product Brand new Made in Germany
LED hybrid light that illuminates and signals in one 29 mm low-profile housing. 4600 lm of white working light plus RGB signalling by flashing or colour change, IP67/IP69K and oil-resistant for CNC use.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The TUBELED_40 II RGB-W ECO brightly lights a machine and reports its status by colour from a single device. The 29 mm low-profile housing delivers 4600 lm of white working light and switches to an RGB signal colour when needed.
Key benefits

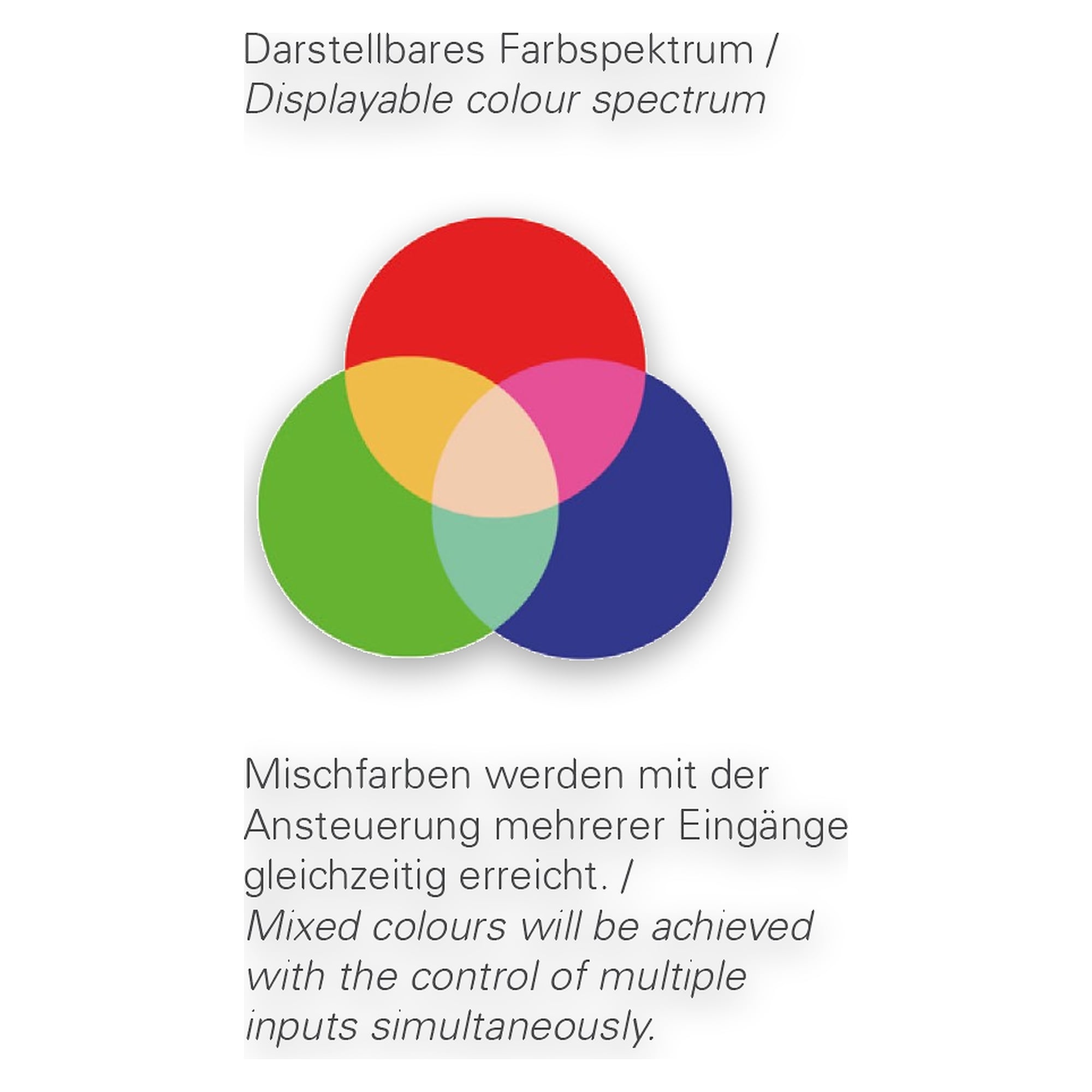

- 4600 lm white working light with RGB signalling by flashing or colour change
- Reports status changes such as cycle end or fault right at the work area
- IP67/IP69K rating, oil-resistant and chip-impact-proof, fully CNC-ready
- Only 29 mm low-profile, aluminium housing with shatter-resistant safety glass
- Service life over 100,000 h (L80/B10), made in Germany
Applications
Suited to interior lighting of machine tools, CNC centres and production cells where status changes need to be signalled by colour.
Certifications: CE, UKCA, ETL Listed (5003529), D-Kennzeichnung. Risk group per DIN EN 62471: exempt group. Made in Germany.
Technical data
| Model | TUBELED_40 II RGB-W ECO |
|---|---|
| Design | LED surface-mounted light |
| Light source | SMD RGB-W cluster LED |
| White power | ~28 W |
| White flux | 4600 lm |
| White efficacy | ~165 lm/W |
| Red power | ~8,6 W |
| Red flux | 552 lm |
| Green power | ~5,8 W |
| Green flux | 1008 lm |
| Blue power | ~8,6 W |
| Blue flux | 336 lm |
| White light colour | 5000K 3-step MacAdam |
| White colour rendering (Ra) | >85 |
| Light distribution | Light Forming Technology |
| Supply voltage | 24 V DC -10 %+7 % (RGB), 24 V DC ±10 % (W) |
| Connection | M12 A-coded |
| Number of pins | 5 |
| Protection rating (IP) | IP67/IP69K |
| Protection class | III |
| Glare control | Diffuser, toughened safety glass |
| Beam angle | 100° |
| Operating temperature | -30 °C - +70 °C |
| Service life | > 100.000 h (L80/B10) |
| Housing material | Aluminium |
| Cover material | Safety glass, shatter-resistant |

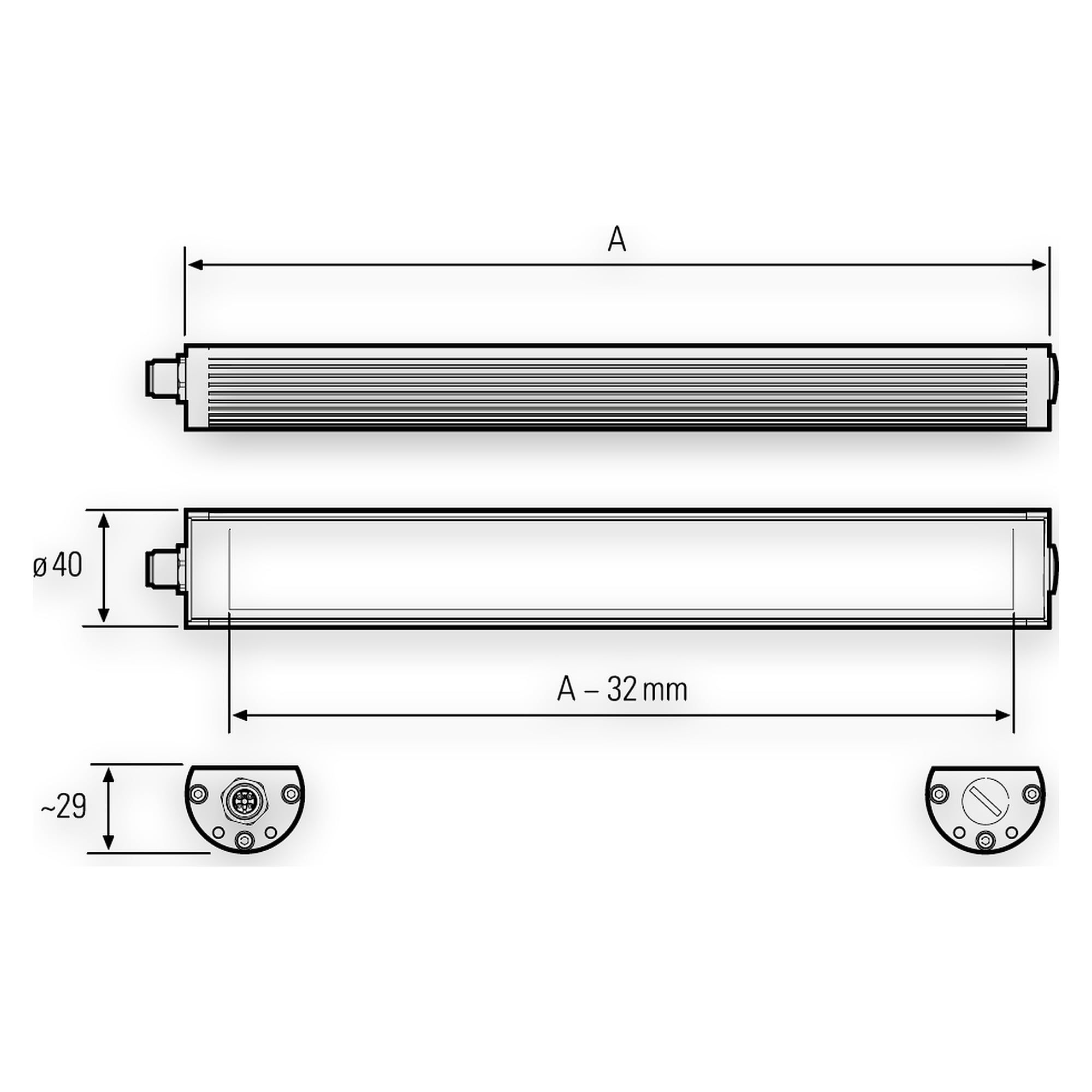

| Dimensions | 1040 mm x 40 mm x 29 mm |
| Weight | 1350 g |
| Risk group (DIN EN 62471) | Exempt group |
| Certifications | CE, UKCA, ETL Listed (5003529), D-Kennzeichnung |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Hersteller-Nr | 118590-02 |
| Zolltarifnummer | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Norm | DIN EN 62471 |
| Lichtstrom (Lumen) | 4600 lm |
| Power | 28 W |
| Colour temperature | 5000K |
| Abstrahlwinkel | 100° |
| Montageart | Anbauleuchte |
| Operating voltage | 24 V |
| Protection rating | IP69K |
